Tribute: A Different Kind of Project (Subaru WRC '01 R/C Replica)
**ATTN: Mods. move this if you want, that is, since it's not 'really' a car project**
While I'm still searching for a '05 WRX in the Bay, I thought I'd get myself involved in my other hobby in the meantime -- R/C. I've been into the hobby since '99, but have never built this kind of project.
This project includes two (okay, three!) of my most favorite things -- R/C, Subaru's, and WRC. I thought I'd do a tribute to each of those things.
Throughout this project, I will post pics...then at the end, a movie...in the dirt!
Start Date: 7/11/05
End Date (Hopefully): 7/20/05
So far:
AE TC3 Chassis (4WD Shaft-Drive)
Novak Cyclone C2 Speed Controller
Trinity P2K Pro 27x1 Stock Motor
KO Helios Computer Radio System
List of upgrades coming:
AE TC3 Rally Conversion Kit
HPI Pirelli Rally Tires
HPI '04 STi BBS' style 10 spoke Wheels
HPI Subaru WRC '01 Replica Rally Body
Trinity D6 10x2 Mod Motor
HPI 'WRC Tarmac" style 10 spoke Wheels
HPI Yokohama Advan Tarmac tires
AE Graphite Wheel Hubs
Maybe Carbon Fiber goodies?![Wink](https://www.i-club.com/forums/images/smilies/wink.gif)
What custom mods I have already done:
Mudflaps
Electronics Radio Box (scrapped for better enclosure later on)
Pics from "So Far" (ignore the dish wheels):
![Name: DSC02120.jpg
Views: 13
Size: 105.5 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201833d1501439105-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02120.jpg)
Radio Box:
![Name: DSC02123.jpg
Views: 12
Size: 117.8 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201834d1501439105-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02123.jpg)

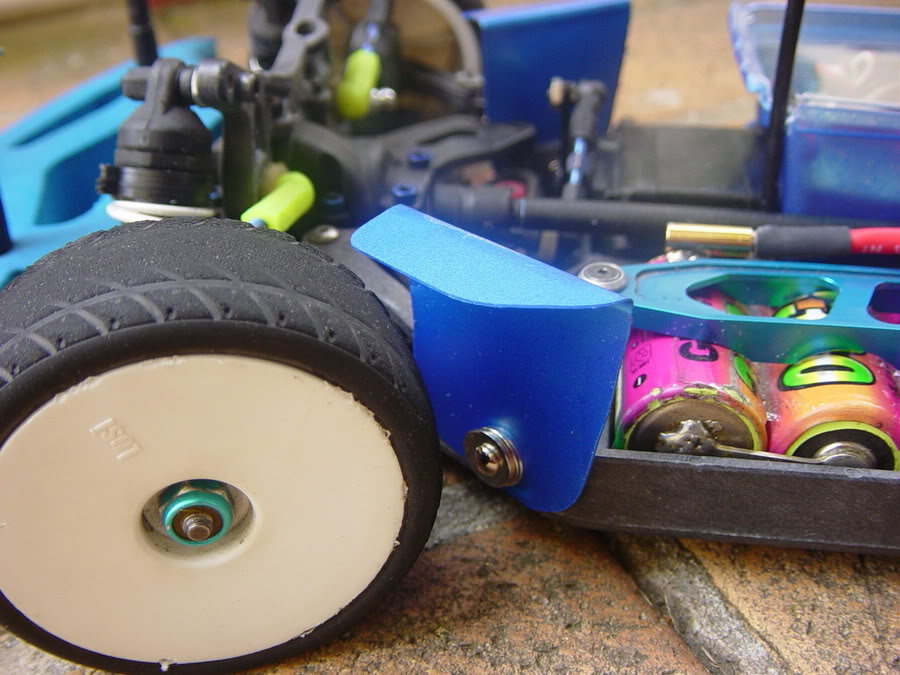

Mudflaps:
![Name: DSC02121.jpg
Views: 12
Size: 102.3 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201835d1501439105-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02121.jpg)
Electronics:
![Name: DSC02124.jpg
Views: 12
Size: 134.9 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201836d1501439105-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02124.jpg)
New update tomorrow! Stay Tuned.
While I'm still searching for a '05 WRX in the Bay, I thought I'd get myself involved in my other hobby in the meantime -- R/C. I've been into the hobby since '99, but have never built this kind of project.
This project includes two (okay, three!) of my most favorite things -- R/C, Subaru's, and WRC. I thought I'd do a tribute to each of those things.
Throughout this project, I will post pics...then at the end, a movie...in the dirt!
Start Date: 7/11/05
End Date (Hopefully): 7/20/05
So far:
AE TC3 Chassis (4WD Shaft-Drive)
Novak Cyclone C2 Speed Controller
Trinity P2K Pro 27x1 Stock Motor
KO Helios Computer Radio System
List of upgrades coming:
AE TC3 Rally Conversion Kit
HPI Pirelli Rally Tires
HPI '04 STi BBS' style 10 spoke Wheels
HPI Subaru WRC '01 Replica Rally Body
Trinity D6 10x2 Mod Motor
HPI 'WRC Tarmac" style 10 spoke Wheels
HPI Yokohama Advan Tarmac tires
AE Graphite Wheel Hubs
Maybe Carbon Fiber goodies?
![Wink](https://www.i-club.com/forums/images/smilies/wink.gif)
What custom mods I have already done:
Mudflaps
Electronics Radio Box (scrapped for better enclosure later on)
Pics from "So Far" (ignore the dish wheels):
![Name: DSC02120.jpg
Views: 13
Size: 105.5 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201833d1501439105-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02120.jpg)
Radio Box:
![Name: DSC02123.jpg
Views: 12
Size: 117.8 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201834d1501439105-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02123.jpg)
Mudflaps:
![Name: DSC02121.jpg
Views: 12
Size: 102.3 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201835d1501439105-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02121.jpg)
Electronics:
![Name: DSC02124.jpg
Views: 12
Size: 134.9 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201836d1501439105-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02124.jpg)
New update tomorrow! Stay Tuned.
#3
Registered User
Thread Starter
iTrader: (10)
Join Date: Jun 2005
Location: Daly City
Posts: 2,641
Car Info: 2001 Impreza 2.2L
Day 2
Received the kit, tires, wheels, and motor. Time to put everything together.
I'm almost halfway done with it.
Pics:

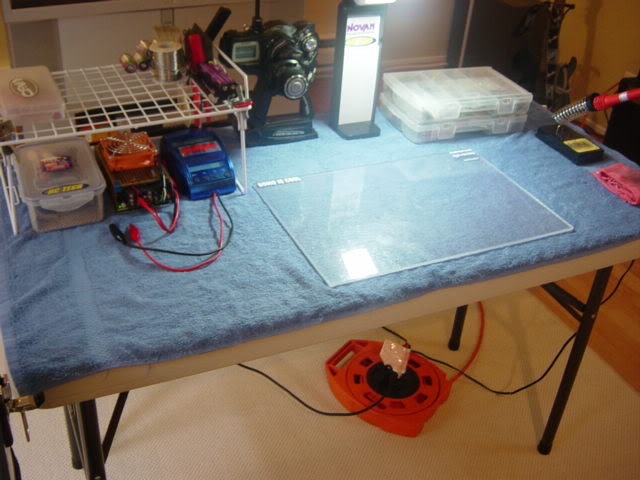

Temp Workarea:
![Name: DSC02141.jpg
Views: 13
Size: 48.4 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201806d1501439039-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02141.jpg)
What I've received today:
![Name: DSC02143.jpg
Views: 12
Size: 53.1 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201807d1501439039-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02143.jpg)
Parts in the kit:
![Name: DSC02145.jpg
Views: 10
Size: 32.4 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201808d1501439039-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02145.jpg)

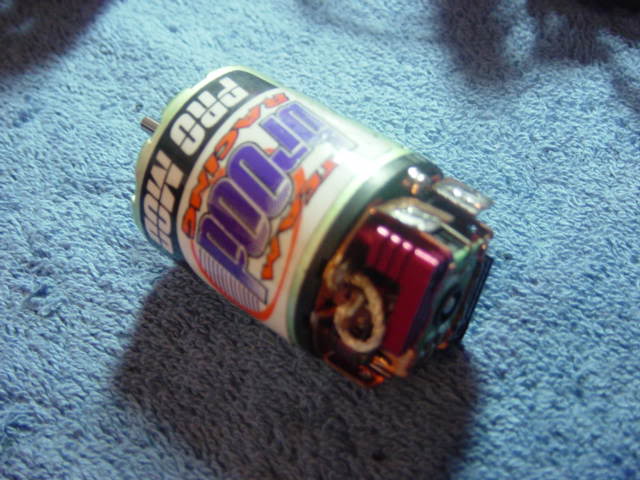

Motor:
![Name: DSC02151.jpg
Views: 12
Size: 54.2 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201809d1501439039-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02151.jpg)
Shocks:
Received the kit, tires, wheels, and motor. Time to put everything together.
I'm almost halfway done with it.
Pics:
Temp Workarea:
![Name: DSC02141.jpg
Views: 13
Size: 48.4 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201806d1501439039-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02141.jpg)
What I've received today:
![Name: DSC02143.jpg
Views: 12
Size: 53.1 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201807d1501439039-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02143.jpg)
Parts in the kit:
![Name: DSC02145.jpg
Views: 10
Size: 32.4 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201808d1501439039-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02145.jpg)
Motor:
![Name: DSC02151.jpg
Views: 12
Size: 54.2 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201809d1501439039-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02151.jpg)
Shocks:
![](http://i16.photobucket.com/albums/b24/drewbaru/TC3%20RX%20Build/DSC02147.jpg)
#4
Registered User
Thread Starter
iTrader: (10)
Join Date: Jun 2005
Location: Daly City
Posts: 2,641
Car Info: 2001 Impreza 2.2L
I've been working on the car all day. Finally got done with the suspension arms, mouting the coilovers and rebuilt the front and rear differentials as well. I also installed the motor and wiring.
Rear differential:
![](http://i16.photobucket.com/albums/b24/drewbaru/TC3%20RX%20Build/DSC02146.jpg)

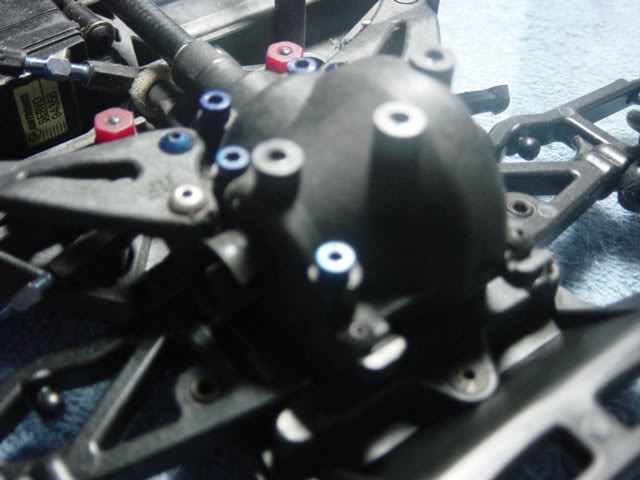

Front differential:
![Name: DSC02155.jpg
Views: 12
Size: 36.8 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201789d1501439010-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02155.jpg)

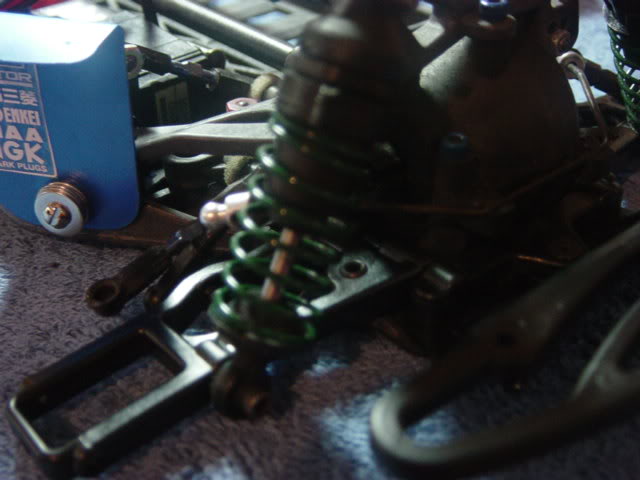

Front suspension:
![Name: DSC02154.jpg
Views: 11
Size: 35.7 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201790d1501439010-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02154.jpg)
Motor on the car:
![Name: DSC02152.jpg
Views: 10
Size: 49.4 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201791d1501439010-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02152.jpg)
Tomorrow:
Mount Gravel/Dirt Tires/Wheels
Paint Tarmac Wheels Gold
Rear differential:
![](http://i16.photobucket.com/albums/b24/drewbaru/TC3%20RX%20Build/DSC02146.jpg)
Front differential:
![Name: DSC02155.jpg
Views: 12
Size: 36.8 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201789d1501439010-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02155.jpg)
Front suspension:
![Name: DSC02154.jpg
Views: 11
Size: 35.7 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201790d1501439010-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02154.jpg)
Motor on the car:
![Name: DSC02152.jpg
Views: 10
Size: 49.4 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201791d1501439010-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02152.jpg)
Tomorrow:
Mount Gravel/Dirt Tires/Wheels
Paint Tarmac Wheels Gold
#5
Registered User
Thread Starter
iTrader: (10)
Join Date: Jun 2005
Location: Daly City
Posts: 2,641
Car Info: 2001 Impreza 2.2L
Finally got done with the main chassis. Tested it outside and looks like it runs in the mid 40mph range to low 50mph range (on freshly charged battery packs). But I'll gear it for dirt later on for more acceleration

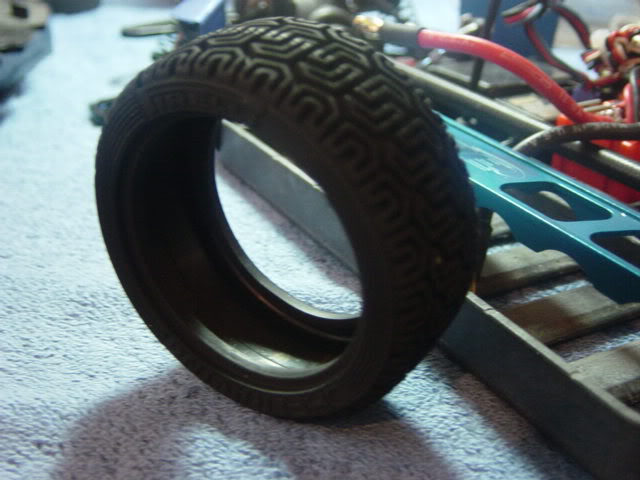

Replica Pirelli "T" Pattern Dirt/Gravel Tires:
![Name: DSC02148.jpg
Views: 11
Size: 45.5 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201782d1501438996-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02148.jpg)
Completed Front Suspension:
![](http://i16.photobucket.com/albums/b24/drewbaru/TC3%20RX%20Build/DSC02157.jpg)
Completed Rear Suspension:
![Name: DSC02150.jpg
Views: 10
Size: 49.0 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201783d1501438996-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02150.jpg)

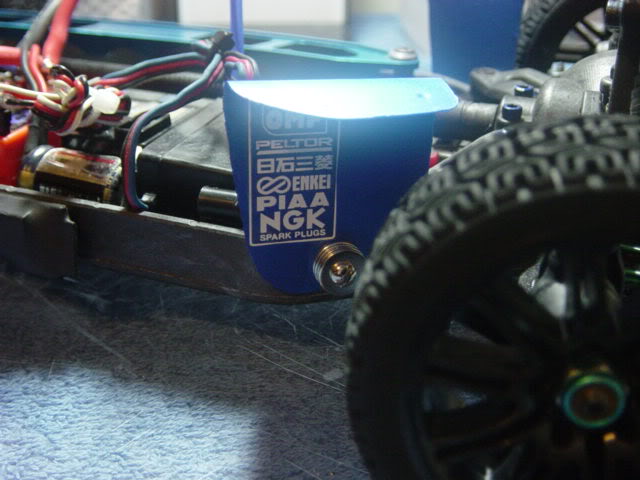

Closeup of mudflaps with stickers:
![Name: DSC02156.jpg
Views: 10
Size: 45.2 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201784d1501438996-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02156.jpg)
Completed Overview:
Replica Pirelli "T" Pattern Dirt/Gravel Tires:
![Name: DSC02148.jpg
Views: 11
Size: 45.5 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201782d1501438996-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02148.jpg)
Completed Front Suspension:
![](http://i16.photobucket.com/albums/b24/drewbaru/TC3%20RX%20Build/DSC02157.jpg)
Completed Rear Suspension:
![Name: DSC02150.jpg
Views: 10
Size: 49.0 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201783d1501438996-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02150.jpg)
Closeup of mudflaps with stickers:
![Name: DSC02156.jpg
Views: 10
Size: 45.2 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201784d1501438996-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02156.jpg)
Completed Overview:
![Name: DSC02158.jpg
Views: 10
Size: 54.8 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201785d1501438996-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02158.jpg)
#6
Registered User
Thread Starter
iTrader: (10)
Join Date: Jun 2005
Location: Daly City
Posts: 2,641
Car Info: 2001 Impreza 2.2L
I also painted the tarmac wheels. I had to mask them off since these are already mounted and I didn't feel like un-glueing them.
Tires/Wheels masked off:
![Name: DSC02160.jpg
Views: 10
Size: 51.7 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201779d1501438996-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02160.jpg)
Painted:

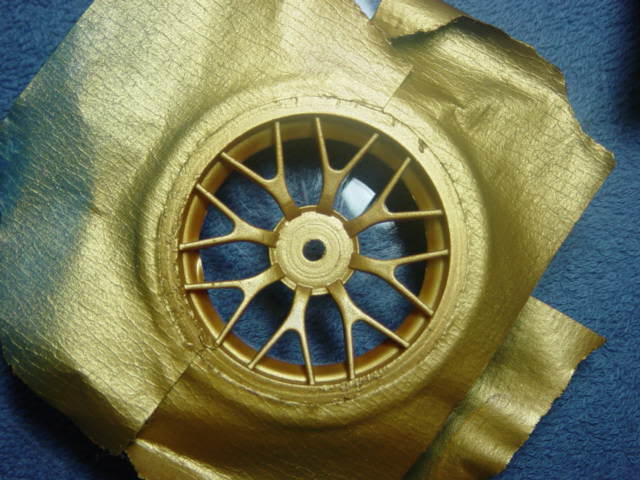

![Name: DSC02162.jpg
Views: 10
Size: 53.2 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201780d1501438996-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02162.jpg)
Masking Tape Removed:
![Name: DSC02164.jpg
Views: 10
Size: 47.9 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201781d1501438996-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02164.jpg)
Looks pretty clean to me. Masking off all four front and back took around 30min.
Tires/Wheels masked off:
![Name: DSC02160.jpg
Views: 10
Size: 51.7 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201779d1501438996-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02160.jpg)
Painted:
![Name: DSC02162.jpg
Views: 10
Size: 53.2 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201780d1501438996-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02162.jpg)
Masking Tape Removed:
![Name: DSC02164.jpg
Views: 10
Size: 47.9 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201781d1501438996-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02164.jpg)
Looks pretty clean to me. Masking off all four front and back took around 30min.
#7
Registered User
Thread Starter
iTrader: (10)
Join Date: Jun 2005
Location: Daly City
Posts: 2,641
Car Info: 2001 Impreza 2.2L
To do list:
- Paint Subaru WRC '01 Body
- Make some kind of cold air intake for the motor to cool down (planning to stick some air filter foam on the roof scoop of the body then use some kind of bracket underneath with a hose attached.
-Film
- Paint Subaru WRC '01 Body
- Make some kind of cold air intake for the motor to cool down (planning to stick some air filter foam on the roof scoop of the body then use some kind of bracket underneath with a hose attached.
-Film
![Wink](https://www.i-club.com/forums/images/smilies/wink.gif)
#8
Registered User
Thread Starter
iTrader: (10)
Join Date: Jun 2005
Location: Daly City
Posts: 2,641
Car Info: 2001 Impreza 2.2L

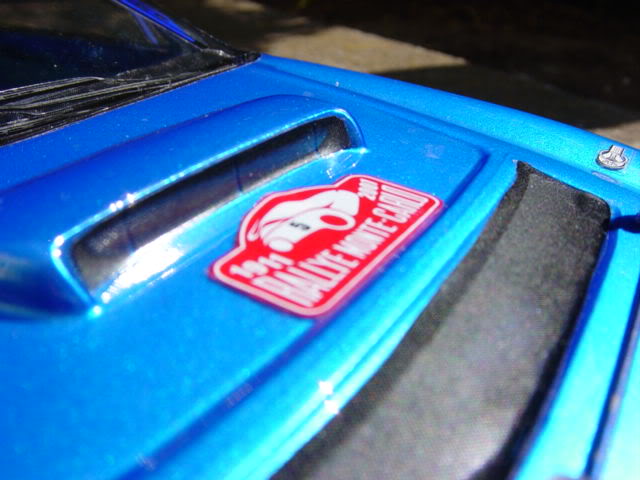

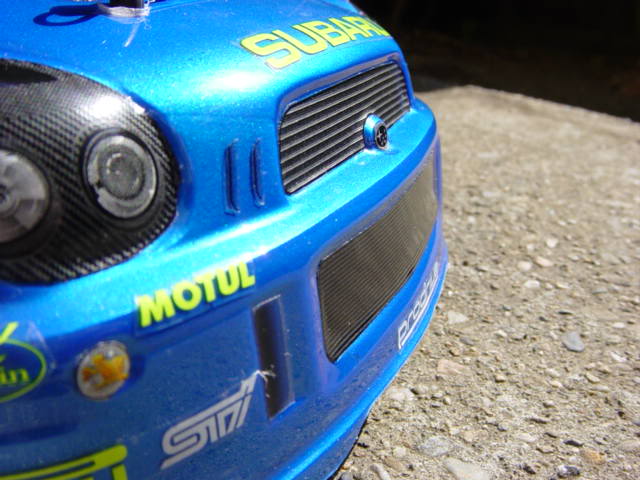

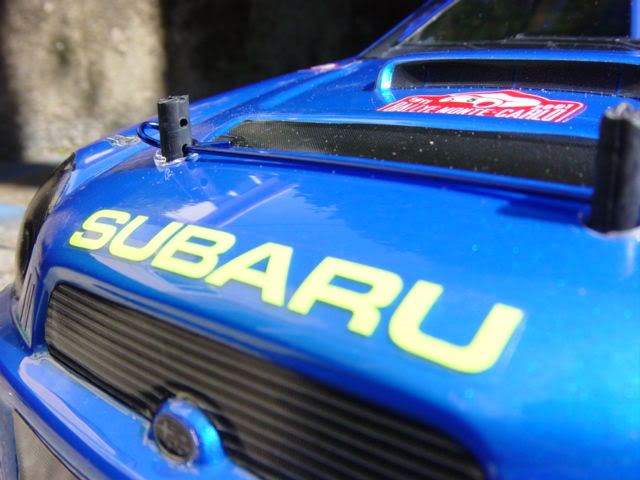

Got done painting/detailing the body today.
Here they are:

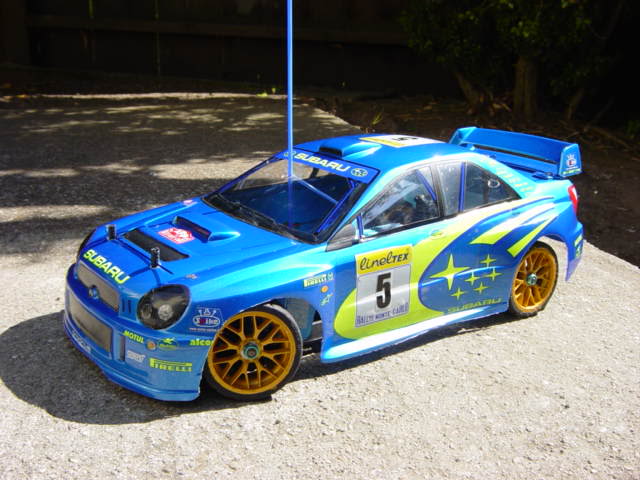

![Name: DSC02166.jpg
Views: 17
Size: 54.4 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201714d1501438766-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02166.jpg)
![](http://i16.photobucket.com/albums/b24/drewbaru/TC3%20RX%20Complete/DSC02167.jpg)
![Name: DSC02168.jpg
Views: 11
Size: 46.4 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201715d1501438766-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02168.jpg)
![Name: DSC02169.jpg
Views: 11
Size: 54.3 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201716d1501438766-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02169.jpg)

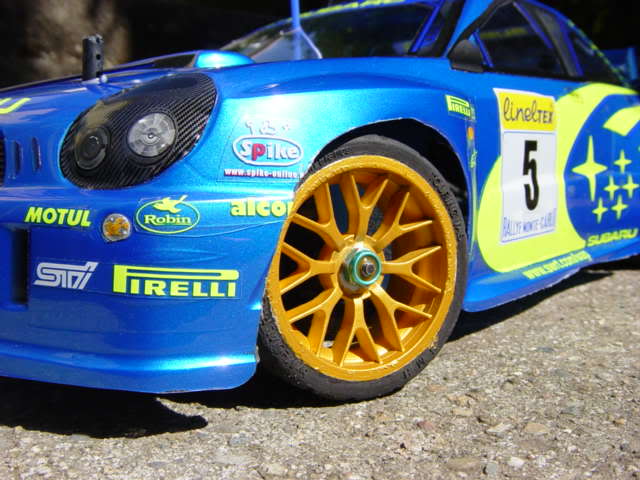

![Name: DSC02170.jpg
Views: 17
Size: 53.5 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201717d1501438766-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02170.jpg)
![Name: DSC02174.jpg
Views: 10
Size: 54.8 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201718d1501438766-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02174.jpg)
![Name: DSC02178.jpg
Views: 11
Size: 46.6 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201719d1501438766-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02178.jpg)
![Name: DSC02171.jpg
Views: 10
Size: 42.2 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201720d1501438766-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02171.jpg)
Rest of the pics here:
http://photobucket.com/albums/b24/dr...RX%20Complete/
Here they are:
![Name: DSC02166.jpg
Views: 17
Size: 54.4 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201714d1501438766-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02166.jpg)
![](http://i16.photobucket.com/albums/b24/drewbaru/TC3%20RX%20Complete/DSC02167.jpg)
![Name: DSC02168.jpg
Views: 11
Size: 46.4 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201715d1501438766-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02168.jpg)
![Name: DSC02169.jpg
Views: 11
Size: 54.3 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201716d1501438766-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02169.jpg)
![Name: DSC02170.jpg
Views: 17
Size: 53.5 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201717d1501438766-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02170.jpg)

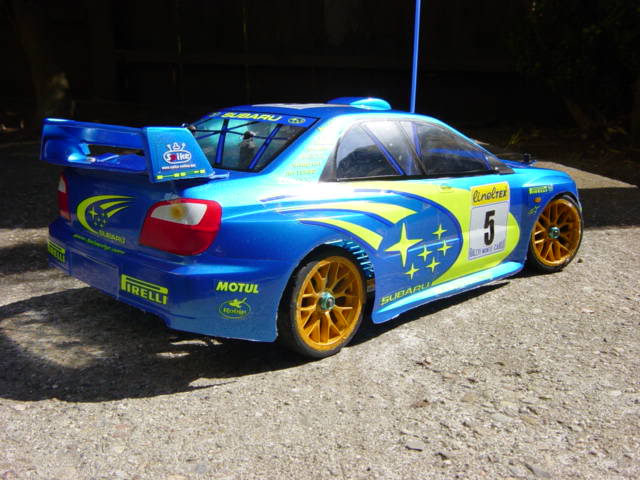

![Name: DSC02174.jpg
Views: 10
Size: 54.8 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201718d1501438766-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02174.jpg)
![Name: DSC02178.jpg
Views: 11
Size: 46.6 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201719d1501438766-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02178.jpg)
![Name: DSC02171.jpg
Views: 10
Size: 42.2 KB](https://www.i-club.com/forums/attachments/ongoing-projects-31/201720d1501438766-tribute-different-kind-project-subaru-wrc-01-r-c-replica-dsc02171.jpg)
Rest of the pics here:
http://photobucket.com/albums/b24/dr...RX%20Complete/
#11
Registered User
Thread Starter
iTrader: (10)
Join Date: Jun 2005
Location: Daly City
Posts: 2,641
Car Info: 2001 Impreza 2.2L
myroncuz: Thanks!
blue blurr: Yeah, it's an HPI body. Wish they'd made the MY04 in the rally scheme.
New 'Teaser' Video Out:
Click Here
blue blurr: Yeah, it's an HPI body. Wish they'd made the MY04 in the rally scheme.
New 'Teaser' Video Out:
Click Here
#14
Sweet project! You know, those TC3's can jump a lot better then you think. I got mine maybe 10-15 ft in the air once. They weigh so little that they actually land ok.
Just watch out for rocks getting stuck in the steering rack. They will get it stuck turning one way or another and you will immediately crash it. How good is the rally kit?
Just watch out for rocks getting stuck in the steering rack. They will get it stuck turning one way or another and you will immediately crash it. How good is the rally kit?
#15
Registered User
Thread Starter
iTrader: (10)
Join Date: Jun 2005
Location: Daly City
Posts: 2,641
Car Info: 2001 Impreza 2.2L
awns729: Sorry still working on the full movie. Not enough footage and too busy. Music in the 'teaser' video is called "Where is my mind" by The Pixies. Maybe I'll edit in some real WRC footage to take up some time.
CrashMaxx: That is very true. This is probably why we didn't get enough footage. Too busy cleaning out the car for debris.
CrashMaxx: That is very true. This is probably why we didn't get enough footage. Too busy cleaning out the car for debris.
