Made me some Fender Cowl Braces!!
What to do on a Lazy Labor day?

How about making some Fender Cowl braces!

Name: IMG_1390.jpg Views: 17 Size: 64.4 KB
Flimsy, stock piece, ready for removal!!
(ps this piece is so weak, i can distort the shape with my hand!)

Name: IMG_1399.jpg Views: 17 Size: 56.2 KB
removed, plates installed

Name: IMG_1400.jpg Views: 14 Size: 54.1 KB
brace tacked in

Name: IMG_1403.jpg Views: 14 Size: 54.3 KB
welded and painted

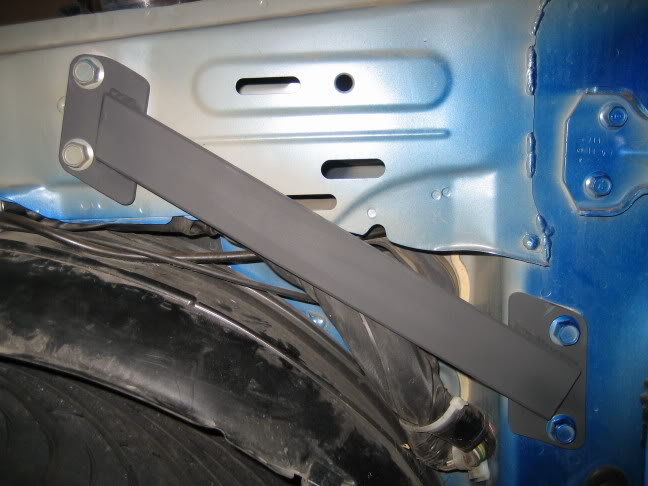

Name: IMG_1407.jpg Views: 17 Size: 49.9 KB
Right Side

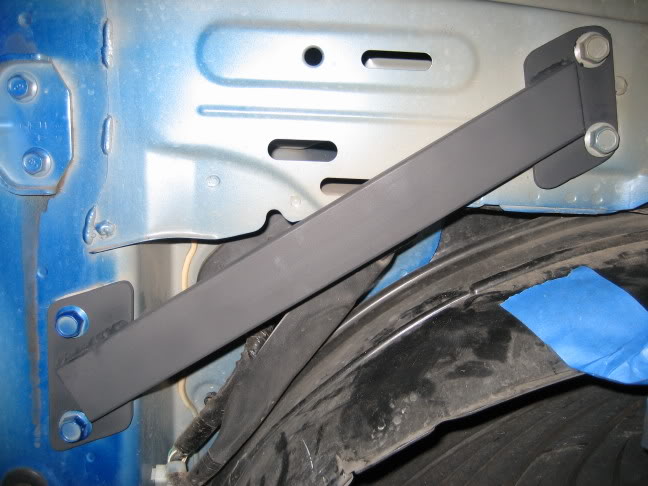

Name: IMG_1419.jpg Views: 14 Size: 53.7 KB
Left side

Turned out pretty good, my buddy's garage/workshop is pretty awesome!!:banana: :disco:

Gonna test out the results at this weekend's AutoX practice!!
skoobywrx is offline
Reply
Old 09-05-2006, 09:50 AM
  #2
Registered User
iTrader: (1)

Jakes02's Avatar

Join Date: Jul 2006
Location: Mount Vernon, Washington
Posts: 2,106
Car Info: 2002 WRX
WOW, they look great. How thick is the bar and end pieces?
Jakes02 is offline
Reply
Old 09-05-2006, 10:03 AM
  #3
Registered User
Thread Starter

skoobywrx's Avatar

Join Date: Jan 2003
Location: Seattle, WA
Posts: 185
Car Info: 05STI/05Leg
Name: IMG_1404.jpg Views: 18 Size: 23.0 KB

bar is 3/4"X1.5" wall thickness of 3/32"

plates are 3/16" thickness

all are 1020 cold roled steel
skoobywrx is offline
Reply
Old 09-05-2006, 10:12 AM
  #4
Registered User
iTrader: (1)

Jakes02's Avatar

Join Date: Jul 2006
Location: Mount Vernon, Washington
Posts: 2,106
Car Info: 2002 WRX
Talking
plenty sturdy. Now all you have to do is make a set for me.
Jakes02 is offline
Reply
Old 09-06-2006, 12:46 AM
  #5
Registered User
iTrader: (1)

Jakes02's Avatar

Join Date: Jul 2006
Location: Mount Vernon, Washington
Posts: 2,106
Car Info: 2002 WRX
I'm gonna have to learn how to weld. Where is the auto-x at?
