How to remove rear deck?

Thread Tools

Search this Thread

Old 06-18-2003, 07:11 PM
  #1
Registered User
Thread Starter
iTrader: (3)

markpaco's Avatar

Join Date: Jan 2003
Location: HI
Posts: 471
Car Info: AWD/FWD/RWD
How to remove rear deck?

I just got my WRX and am going to tint the rear window (I already did the sides). I was wondering if anyone can give me some tips on removing the rear deck. I don't want it to get wet and soggy. And don't ask me to buy a repair manual as I just dropped a lot of dough on this car.
markpaco is offline
Old 07-02-2003, 07:23 AM
  #3
Registered User
iTrader: (1)

Lavery's Avatar

Join Date: Feb 2003
Location: Tennessee, US
Posts: 258
Car Info: 98 Impreza RS
I have forum post from Kastle that should help. Although he is replacing the rear speakers, it should help out. I hope.

rear speakers

luke
Lavery is offline
Old 07-02-2003, 04:03 PM
  #4
Registered User

pmartell12's Avatar

Join Date: Apr 2003
Location: Corunna, Ontario
Posts: 76
Car Info: 02 Blue WRX
I installed some speakers in my rear dash, but my friend (owner/installer of performance shop) did the seat removal for me while worked on speaker pods.

First he removed the rear seat cushion, than the seat back. a couple of bolts and clips.

after that the child safety seat plastic anchors came off.

i also took out the third brake light (v7 spoiler has one)

feel around for clips, I think there was 8 holding the rear dash down.

you will want to rest the dash where the seat was, or unbolt the seat belt.

and you are there, reverse the process to be back to normal.
pmartell12 is offline
Old 07-02-2003, 07:50 PM
  #5
Registered User

brento's Avatar

Join Date: Nov 2002
Location: Aiea, HI
Posts: 713
Car Info: 02 RS

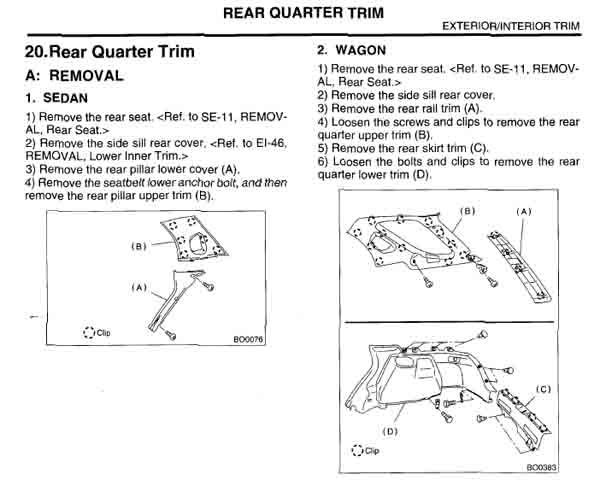

alittle picture to aid
for the 02 but probably the same.
Attached Thumbnails How to remove rear deck?-rearquarter.jpg
brento is offline
Old 07-02-2003, 07:51 PM
  #6
Registered User

brento's Avatar

Join Date: Nov 2002
Location: Aiea, HI
Posts: 713
Car Info: 02 RS

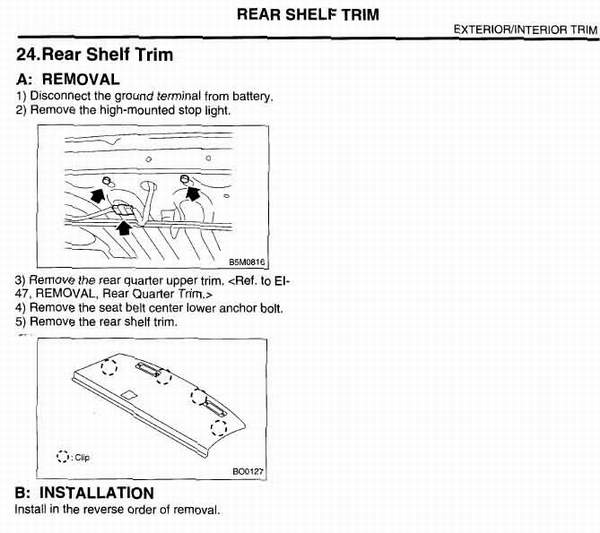

the rear deck half
Attached Thumbnails How to remove rear deck?-rear-shelf.jpg
brento is offline
