Cusco Dual Oil Catch Can Setup...
12-17-2006, 10:56 PM
#1
Registered User
Thread Starter
iTrader: (66)
Join Date: Sep 2003
Location: Windward, Oahu
Posts: 3,615
Car Info: 3 Sleepers: 05 LGT, 05 FXT, 02 WRX
Cusco Dual Oil Catch Can Setup...
Hey...thanks to Jon for bringing up the fact that two catch cans were really necessary on an STI to filter out the oil from the intake tract...and Brad for providing me with the second Cusco catch can...

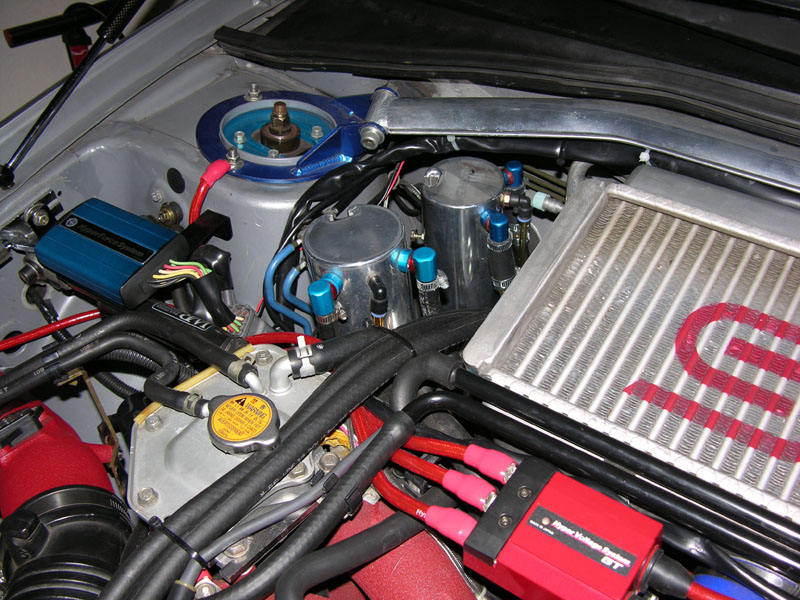

After a few searches on I-Club, NASIOC, and IWSTI...with links provided by Ojichan STI and Bran808...I came up with the following install today...I had to use a bracket to attach the catch can lower along the strut tower and relocate my alarm horn...but it all came out clean and everything works great...

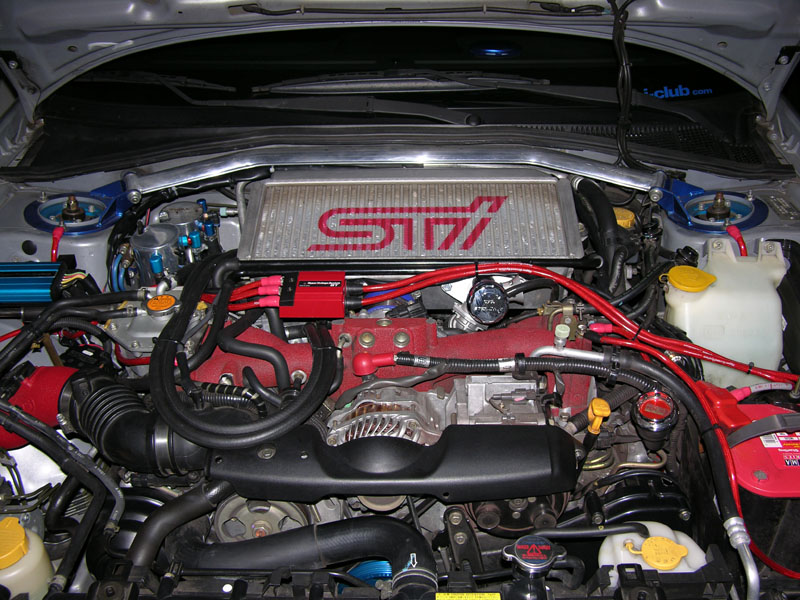

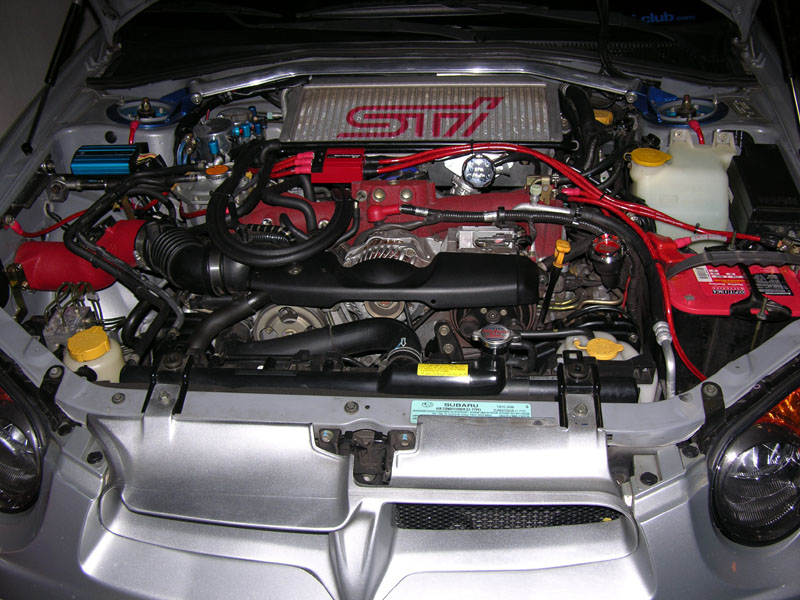

Here are some pics:
After a few searches on I-Club, NASIOC, and IWSTI...with links provided by Ojichan STI and Bran808...I came up with the following install today...I had to use a bracket to attach the catch can lower along the strut tower and relocate my alarm horn...but it all came out clean and everything works great...
Here are some pics:
Last edited by Island Style; 12-17-2006 at 11:26 PM.
12-18-2006, 09:30 AM
#5
Registered User
iTrader: (58)
Join Date: Sep 2005
Location: Waipahu,HI
Posts: 3,186
Car Info: '10 Xt Ltd, '05 X Beater, '01 GS300
Originally Posted by Island Style
Thanks guys...yup Brandon...we are going to have to do your's soon...
12-18-2006, 07:54 PM
#8
Registered User
Thread Starter
iTrader: (66)
Join Date: Sep 2003
Location: Windward, Oahu
Posts: 3,615
Car Info: 3 Sleepers: 05 LGT, 05 FXT, 02 WRX
^^^you got that right Chucky...
Roy is the "Secret" garage man...heh heh
Ya Roy...it's cool...just need to get a bunch of metal brackets to see which works the best...
I luckily found one that worked perfectly..I even bent it around the strut tower...you need to see this...
Ya Roy...it's cool...just need to get a bunch of metal brackets to see which works the best...
I luckily found one that worked perfectly..I even bent it around the strut tower...you need to see this...
12-21-2006, 12:48 AM
#10
Registered User
Thread Starter
iTrader: (66)
Join Date: Sep 2003
Location: Windward, Oahu
Posts: 3,615
Car Info: 3 Sleepers: 05 LGT, 05 FXT, 02 WRX
no...they are not in series,
they are filtering two different points...
1) PCV
2) Crankcase
I'm running two oil catch cans now to keep the PCV and crankcase ventilations separate. They both dump back into the intake eventually though, with or without catch cans...
1) PCV
2) Crankcase
I'm running two oil catch cans now to keep the PCV and crankcase ventilations separate. They both dump back into the intake eventually though, with or without catch cans...
12-21-2006, 01:29 AM
#11
Registered User
iTrader: (11)
Join Date: Sep 2003
Location: In my BUBBLE
Posts: 1,263
Car Info: Rust bucketo
Hmm.. where did you get the line/hoses for the catch can? I think i'd like to replace my crankcase line, I have a pvc-ish type one right now, but it seems to kink too easily. I just can't find something that fits both the intake "bung" so to speak and the metal pipework on the intercooler. If it fits the intercooler, it won't fit on the intake pipe and vice-versa. Maybe silicone? ;d
12-21-2006, 03:54 PM
#14
Registered User
Join Date: Apr 2006
Location: kalihi side
Posts: 174
Car Info: black bugeye
Cool, it looks really good. Ive been wanting to pick up a cusco catch can for a while now. I have one question though how do u know when the can is full? is there a window to see in?
