A/C Expansion Valve
#1
Registered User
Thread Starter
iTrader: (9)
Join Date: Aug 2007
Location: JJJJOOOOOEEEEE!!!!!!!!!!!!!!!!!
Posts: 1,366
Car Info: ghey e-rights activist
A/C Expansion Valve
So i need to replace, condensor and dryer, evaporator, and the expansion valve. After doing research on NASIOC, I figured out that the evaporator is located underneath the passengers side dash, and collectively all i could put together is that the expansion valve seats right behind the evaporator. Could someone verify this for me please.
-Josh-
-Josh-
#3
Registered User
iTrader: (33)
Join Date: Nov 2002
Location: Boostin' troubles away - 4EAT Memories 12.87@103.2
Posts: 10,455
Car Info: 51E LHD V7 STI (2.0)
I believe the expansion valve that you're talking about is behind the dash in the center where your radio is.
I'm going to see if I can upload it
I'm going to see if I can upload it
Last edited by iNfEk; 01-08-2008 at 11:36 AM.
#4
Registered User
Thread Starter
iTrader: (9)
Join Date: Aug 2007
Location: JJJJOOOOOEEEEE!!!!!!!!!!!!!!!!!
Posts: 1,366
Car Info: ghey e-rights activist
Actually, I went to firestone to get a diagnostic cause i'm not an A/C guy and they told me the parts i needed, so i bought them from Subaru myself for a little over a thousand. Condenser and dryer is 400, expansion valve is like 90, and evaporator i believe was like 3 bills. But Subaru should give you an i-club discount. I just need to get this done b4 my son gets born. I'll take a picture of the parts today and i'll have them posted by tomorrow.
Last edited by AngrySubyWagon; 01-08-2008 at 11:44 AM.
#6
Registered User
Thread Starter
iTrader: (9)
Join Date: Aug 2007
Location: JJJJOOOOOEEEEE!!!!!!!!!!!!!!!!!
Posts: 1,366
Car Info: ghey e-rights activist
the actual prices are as follows:
Condenser and Dryer Assembly-403.86
Expansion Valve-118.36
Evaporator-396.74
_________________________________
According to Subaru 02-03 these parts tend to buckle under high humidity weather...so i bought them new.
Condenser and Dryer Assembly-403.86
Expansion Valve-118.36
Evaporator-396.74
_________________________________
According to Subaru 02-03 these parts tend to buckle under high humidity weather...so i bought them new.
#10
Registered User
iTrader: (33)
Join Date: Nov 2002
Location: Boostin' troubles away - 4EAT Memories 12.87@103.2
Posts: 10,455
Car Info: 51E LHD V7 STI (2.0)
you should since the o rings seal the system... being that our cars are years old you'll definitely want to make sure you have a proper seal. no sense in replacing major ac stuff if a little thing like a o ring stops you... just good idea to replace them
#11
Registered User
Thread Starter
iTrader: (9)
Join Date: Aug 2007
Location: JJJJOOOOOEEEEE!!!!!!!!!!!!!!!!!
Posts: 1,366
Car Info: ghey e-rights activist
good point...are the o-rings a subaru part or is it something i can get at a local parts store...i'll pm you part numbers around lunch time. Can't get outta the office till then.
-Josh-
-Josh-
#12
Registered User
Thread Starter
iTrader: (9)
Join Date: Aug 2007
Location: JJJJOOOOOEEEEE!!!!!!!!!!!!!!!!!
Posts: 1,366
Car Info: ghey e-rights activist
http://img.alibaba.com/photo/5073379...nditioners.jpg ------ expansion valve. Is this what you're talking about?
#13
Registered User
iTrader: (33)
Join Date: Nov 2002
Location: Boostin' troubles away - 4EAT Memories 12.87@103.2
Posts: 10,455
Car Info: 51E LHD V7 STI (2.0)
YUP... it's behind the firewall right where the AC line for the TMIC is. It doesn't have that many holes in them but yes that is it....
Here is the list that I plan on getting from subaruparts.com
I just need confirmation if these are what you got.
Green dot is there and ready to ship Yellow dot means have to get it from another warehouse... usually for them it takes 2 business days. I'll probably get the most expensive items first then ship in the additional. Online less shipping showing just over $700.
Here is the list that I plan on getting from subaruparts.com
I just need confirmation if these are what you got.
Green dot is there and ready to ship Yellow dot means have to get it from another warehouse... usually for them it takes 2 business days. I'll probably get the most expensive items first then ship in the additional. Online less shipping showing just over $700.
Last edited by iNfEk; 01-08-2008 at 12:20 PM.
#14
Registered User
Thread Starter
iTrader: (9)
Join Date: Aug 2007
Location: JJJJOOOOOEEEEE!!!!!!!!!!!!!!!!!
Posts: 1,366
Car Info: ghey e-rights activist
my computer at work wont let me see the pic, but when i get my receipt i'll check it on my blackberry and verify. Also if i get to the expansion valve, i should be able to see or have gotten to the condensor...correct?
-Josh-
-Josh-
#15
Registered User
iTrader: (33)
Join Date: Nov 2002
Location: Boostin' troubles away - 4EAT Memories 12.87@103.2
Posts: 10,455
Car Info: 51E LHD V7 STI (2.0)

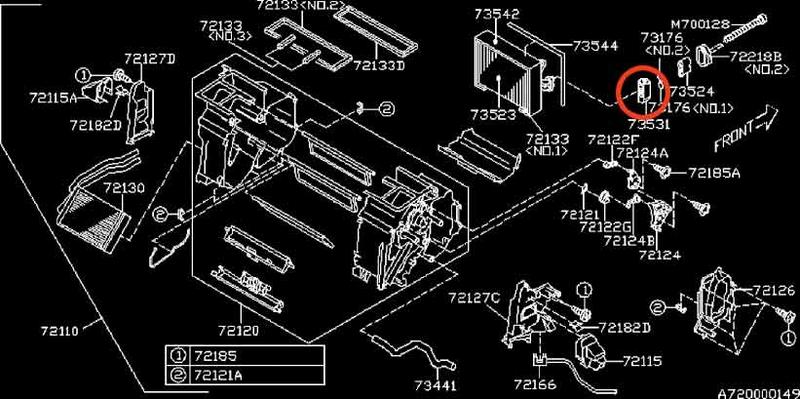

actually... see the attached photo... this is where it's located in the car. If you want to get to it you'll be removing the entire dash and everything after that to remove the heater assembly in the center of the car.
Last edited by iNfEk; 01-08-2008 at 12:34 PM.
