Anyone with in car camera mounts?
#1
Registered User
Thread Starter
iTrader: (38)
Join Date: Oct 2003
Location: rightBehindYou, HI
Posts: 7,783
Car Info: 1973 Huevo Ranchero
Anyone with in car camera mounts?
i'd like to see them in person if anyone has em. i have a canon mini DV that i want to mount inbetween my headrests. the mounts i seen online have brackets clamping on to the headrest area. won't work on my seats.
so if you got em i'd like to see em. i need ideas on how to make my ownthanks.
aloha from the summit of *-^-Mauna Kea-^-*
so if you got em i'd like to see em. i need ideas on how to make my ownthanks.
aloha from the summit of *-^-Mauna Kea-^-*
#2
VIP Member
iTrader: (25)
Join Date: Aug 2004
Location: Spokane, WA
Posts: 7,925
Car Info: '04 WRX Wagon
Gotta put a rollcage up to make it easy
That got me thinking...couldn't you take apart a camera tripod and use just the top part that screws into the camera and somehow mount that piece to be able to quick disconnect from whatever you mount it on?
That got me thinking...couldn't you take apart a camera tripod and use just the top part that screws into the camera and somehow mount that piece to be able to quick disconnect from whatever you mount it on?
#3
Registered User
Thread Starter
iTrader: (38)
Join Date: Oct 2003
Location: rightBehindYou, HI
Posts: 7,783
Car Info: 1973 Huevo Ranchero
^^ yep thats my thoughts exactly.. but before i do a hack-job i'd like to see if anyone here has made one. its tricky cuz my seats aren't stock. as a matter of fact i don't think the STi seats can fit the conventional mounts anyway. and i'm not too keen about suction cups either. i want that windshield/driver first person view.
aloha from the summit of *-^-Mauna Kea-^-*
aloha from the summit of *-^-Mauna Kea-^-*
#6
Registered User
iTrader: (7)
Join Date: Nov 2002
Posts: 3,298
Car Info: 2004 Subaru STI/WRX Silver of course
http://www.chasecam.com/mounts-suction.htm I'm gonna get one now that I got a camera.
#8
Registered User
Join Date: Dec 2002
Location: in da shower with Latka...
Posts: 1,013
Car Info: 2007 7.0RS

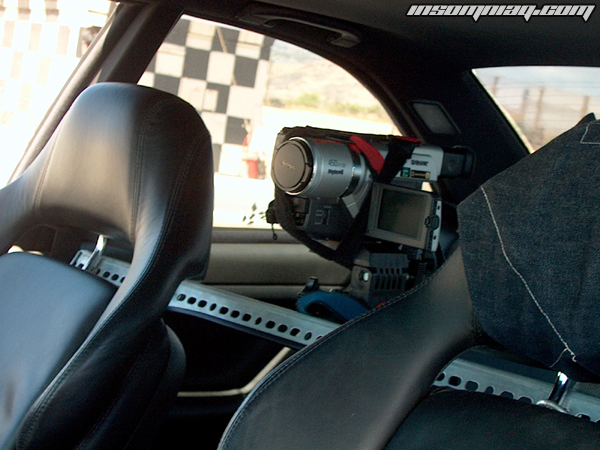

here's a pic of one i made years ago...someone thought it was cool, so i guess he posted it on his website...
cost me about 10 bucks to make, not including the cost of the tripod mount...
just got some angle stock from lowes, some 3/8" threaded rod, and washers and wing nuts...
i wasnt able to use regular u bolts, as they werent shallow enough...so i made my own u bolts with the threaded rod...i seen some variations where no tripod head was used, but with they way my seats are angled, the camera would be pointing to the headliner...so the tripod head mounts directly to my mount, and it's pretty cool, as i can adjust it for the PERFECT picture...or make it face the rear so i can see all the cars i pass ...
since it spans the width of the 2 headrests, the chances of the bolts failing and the contraption getting under the brake pedal is slim...it'll just fall into the rear passenger area...i also backed it up with some long velcro straps which is a secondary safety measure to secure the camera from coming off the mount...of course if you copy what i did, and it fails and the camera rolls under your brake pedal at the end of the straightaway and you die a horrible firey death, it's not my fault...also note, some racing associations will not allow this kind of mickey-mouse camera mount- but every venue here let mine pass...
the picture comes out pretty nice, it is a little shaky at times, but tolerable (yes, it had image stabiliztaion)...and since then, i've used a smaller/lighter camera which helps it a bit...one suggestion though, use a external mic, and place it in the engine bay or in the trunk near the exhaust...at an autocross, it's work good and you can hear the engine sounds okay, but at a track day all i'd hear would be wind noise...
after a while, the novelty of it wears off, and i never use it anymore...and no i wont sell it to you, but i can help you make your own if you want
cost me about 10 bucks to make, not including the cost of the tripod mount...
just got some angle stock from lowes, some 3/8" threaded rod, and washers and wing nuts...
i wasnt able to use regular u bolts, as they werent shallow enough...so i made my own u bolts with the threaded rod...i seen some variations where no tripod head was used, but with they way my seats are angled, the camera would be pointing to the headliner...so the tripod head mounts directly to my mount, and it's pretty cool, as i can adjust it for the PERFECT picture...or make it face the rear so i can see all the cars i pass ...
since it spans the width of the 2 headrests, the chances of the bolts failing and the contraption getting under the brake pedal is slim...it'll just fall into the rear passenger area...i also backed it up with some long velcro straps which is a secondary safety measure to secure the camera from coming off the mount...of course if you copy what i did, and it fails and the camera rolls under your brake pedal at the end of the straightaway and you die a horrible firey death, it's not my fault...also note, some racing associations will not allow this kind of mickey-mouse camera mount- but every venue here let mine pass...
the picture comes out pretty nice, it is a little shaky at times, but tolerable (yes, it had image stabiliztaion)...and since then, i've used a smaller/lighter camera which helps it a bit...one suggestion though, use a external mic, and place it in the engine bay or in the trunk near the exhaust...at an autocross, it's work good and you can hear the engine sounds okay, but at a track day all i'd hear would be wind noise...
after a while, the novelty of it wears off, and i never use it anymore...and no i wont sell it to you, but i can help you make your own if you want
#10
Registered User
Join Date: Dec 2002
Location: in da shower with Latka...
Posts: 1,013
Car Info: 2007 7.0RS
doh, forgot wont work on the seats...what about rear headrests? do they have posts? are there even rear headrests in the wrx/sti???
at least i know it'll work on the older RSs...
if not, then i think bdrifts harnessbar is the way to go...
at least i know it'll work on the older RSs...
if not, then i think bdrifts harnessbar is the way to go...
#12
Registered User
Thread Starter
iTrader: (38)
Join Date: Oct 2003
Location: rightBehindYou, HI
Posts: 7,783
Car Info: 1973 Huevo Ranchero
Originally Posted by poser
doh, forgot wont work on the seats...what about rear headrests? do they have posts? are there even rear headrests in the wrx/sti???
...
...
b, once i get some real free time i will meet up with you to see your setup.
ty, if we make one i really would like a "stealth"/streamline mount- kinda ironic since my camera is silver and shiny<---- black powdercoat??
aloha from the summit of *-^-Mauna Kea-^-*
#14
b_drift's setup is nice. i was considering going that way, but further in the future when my driving gets better and i need to get a 4-point harness.
greg- my setup is going to be pretty simple and easy to remove. right now i'm trying to figure out a way to restrain the front to back movement a little better. and i was planning on painting it either gray or black.
greg- my setup is going to be pretty simple and easy to remove. right now i'm trying to figure out a way to restrain the front to back movement a little better. and i was planning on painting it either gray or black.
