Now, changing out the fuel pump and installing the rear subframe and tank on the RS was not documented...if I remember correctly, we were busting a** that day so we didn't even think of taking pics.

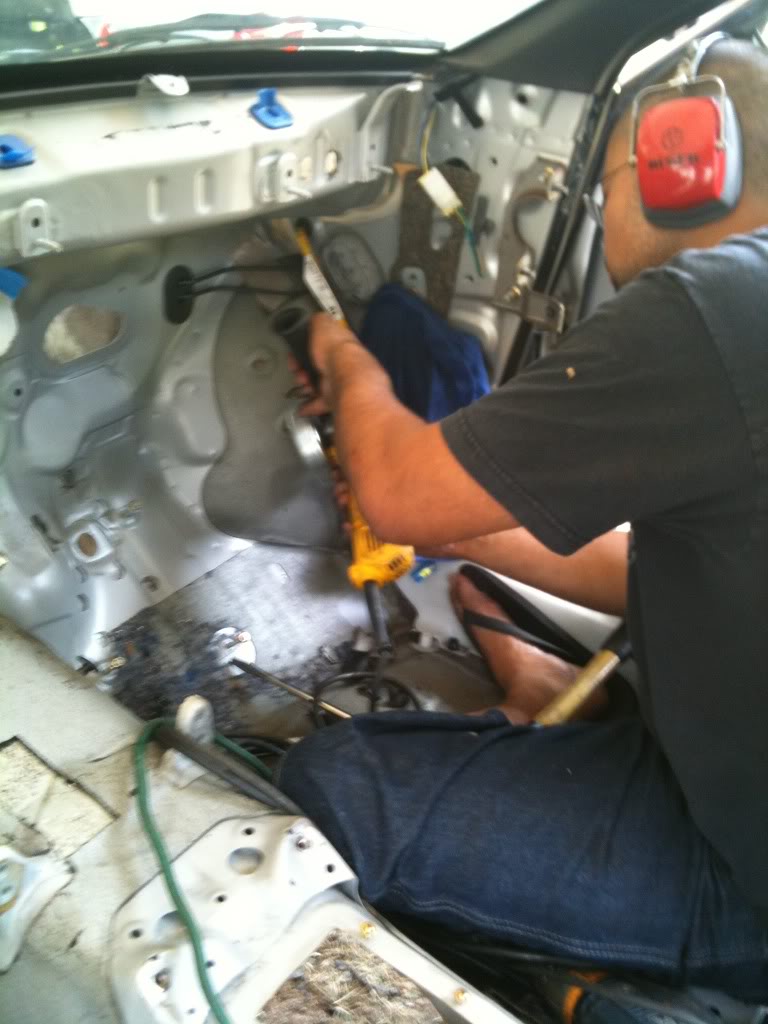

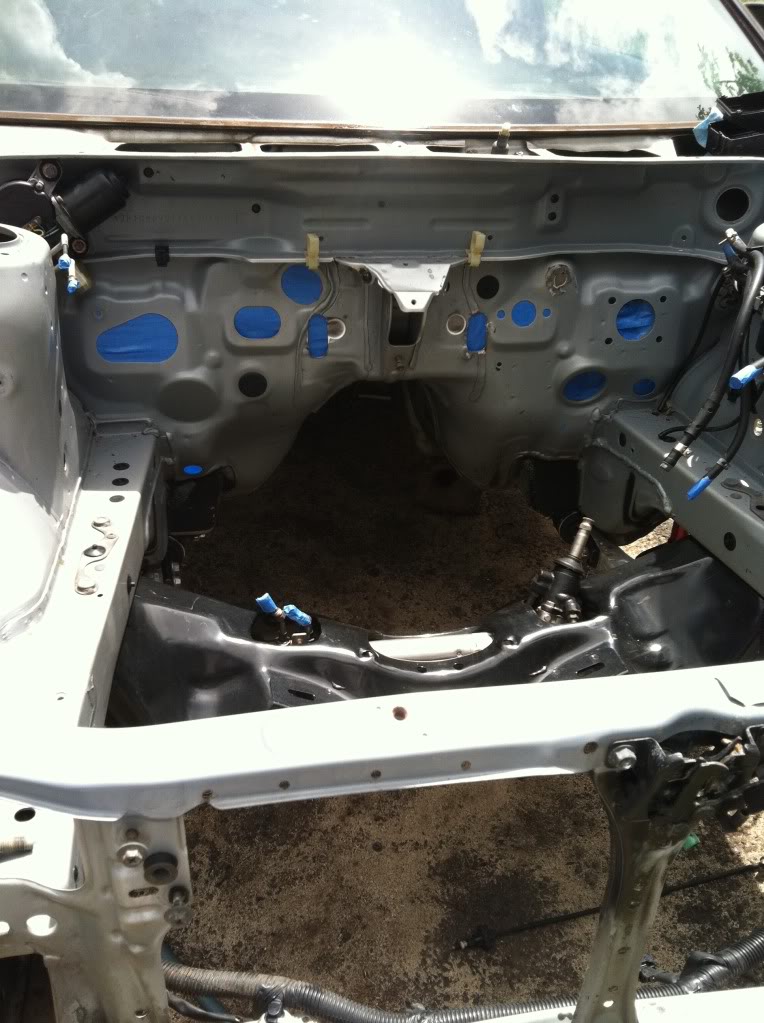

From there we had to decide how we were going to mount the heater core from the STi into the RS so I could have AC. Jimi was awesome at measuring out and re-welding the mounting brackets from the STi on to the RS frame...not to mention cutting into the firewall to re-route the coolant lines for the heater core. He also had to weld some holes in the firewall where the RS lines would be coming in, and they werent used.
![Name: Picture013.jpg
Views: 8
Size: 85.6 KB](https://www.i-club.com/forums/attachments/hawaii-43/117418d1501247108-another-dizzy-diznave-motorsports-jt-tuning-swap-begins-picture013.jpg)

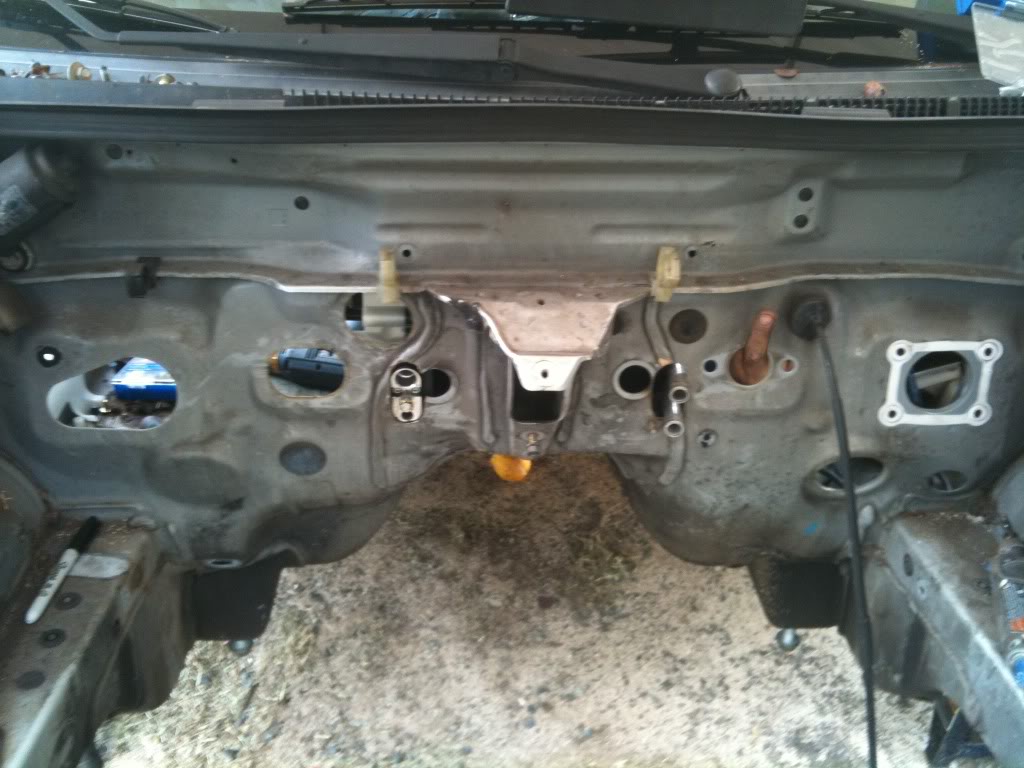

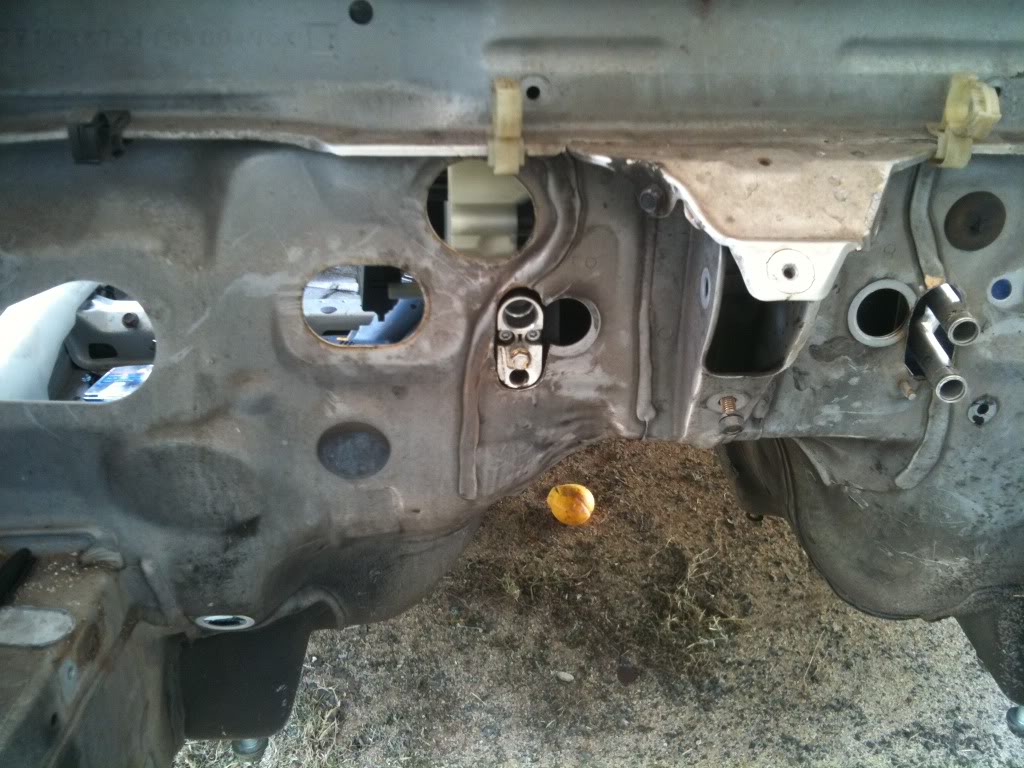

Here is what it looked like mocked up when Jimi was done...
![Name: Picture014.jpg
Views: 9
Size: 102.5 KB](https://www.i-club.com/forums/attachments/hawaii-43/117419d1501247108-another-dizzy-diznave-motorsports-jt-tuning-swap-begins-picture014.jpg)
![Name: Picture016.jpg
Views: 8
Size: 133.4 KB](https://www.i-club.com/forums/attachments/hawaii-43/117420d1501247108-another-dizzy-diznave-motorsports-jt-tuning-swap-begins-picture016.jpg)
(and yes...that is a small papaya that fell from the tree and someone sticking the finger at me)
From there we had to decide how we were going to mount the heater core from the STi into the RS so I could have AC. Jimi was awesome at measuring out and re-welding the mounting brackets from the STi on to the RS frame...not to mention cutting into the firewall to re-route the coolant lines for the heater core. He also had to weld some holes in the firewall where the RS lines would be coming in, and they werent used.
![Name: Picture013.jpg
Views: 8
Size: 85.6 KB](https://www.i-club.com/forums/attachments/hawaii-43/117418d1501247108-another-dizzy-diznave-motorsports-jt-tuning-swap-begins-picture013.jpg)
Here is what it looked like mocked up when Jimi was done...
![Name: Picture014.jpg
Views: 9
Size: 102.5 KB](https://www.i-club.com/forums/attachments/hawaii-43/117419d1501247108-another-dizzy-diznave-motorsports-jt-tuning-swap-begins-picture014.jpg)
![Name: Picture016.jpg
Views: 8
Size: 133.4 KB](https://www.i-club.com/forums/attachments/hawaii-43/117420d1501247108-another-dizzy-diznave-motorsports-jt-tuning-swap-begins-picture016.jpg)
(and yes...that is a small papaya that fell from the tree and someone sticking the finger at me)
#49
Staff Member
iTrader: (16)

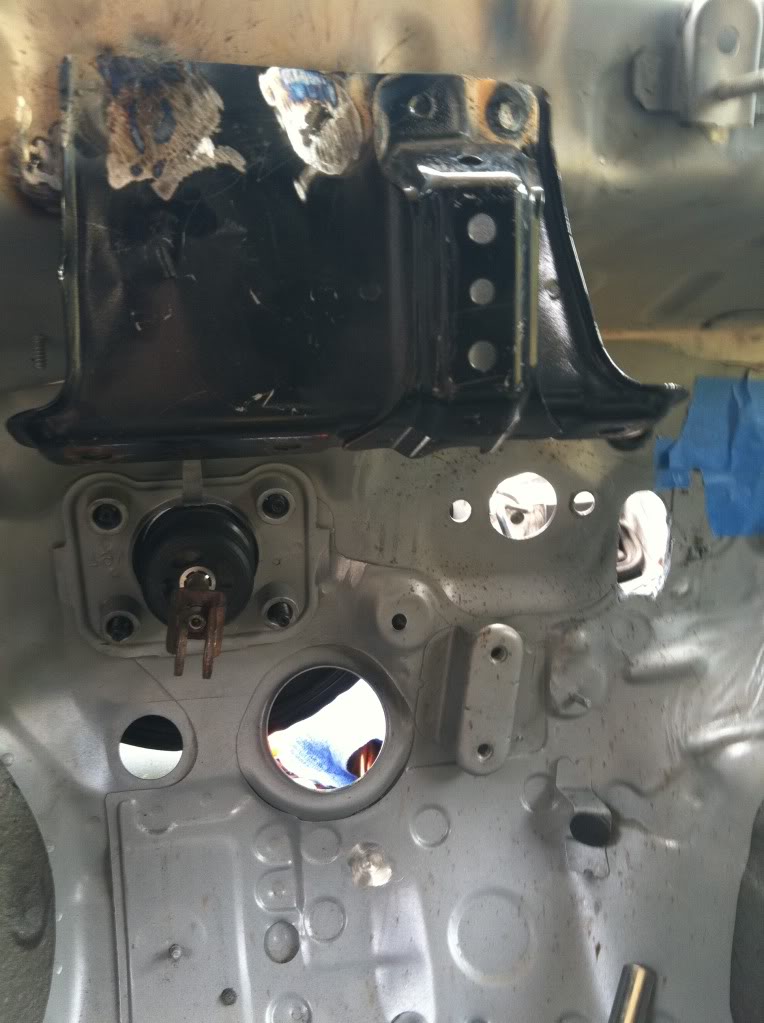

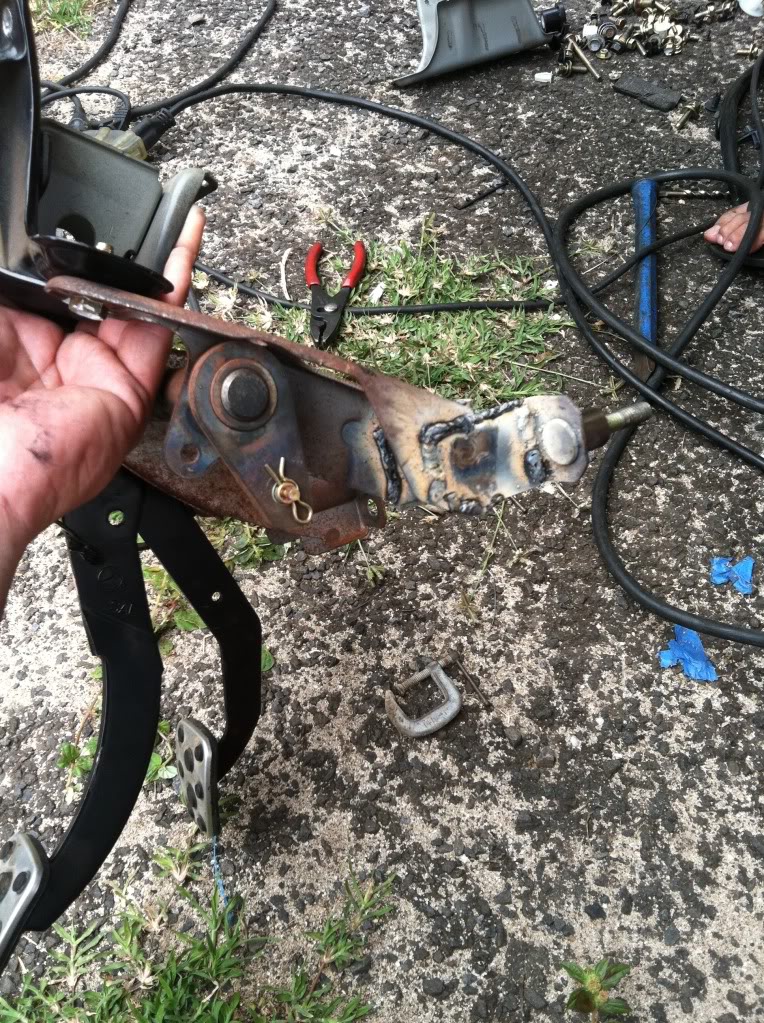

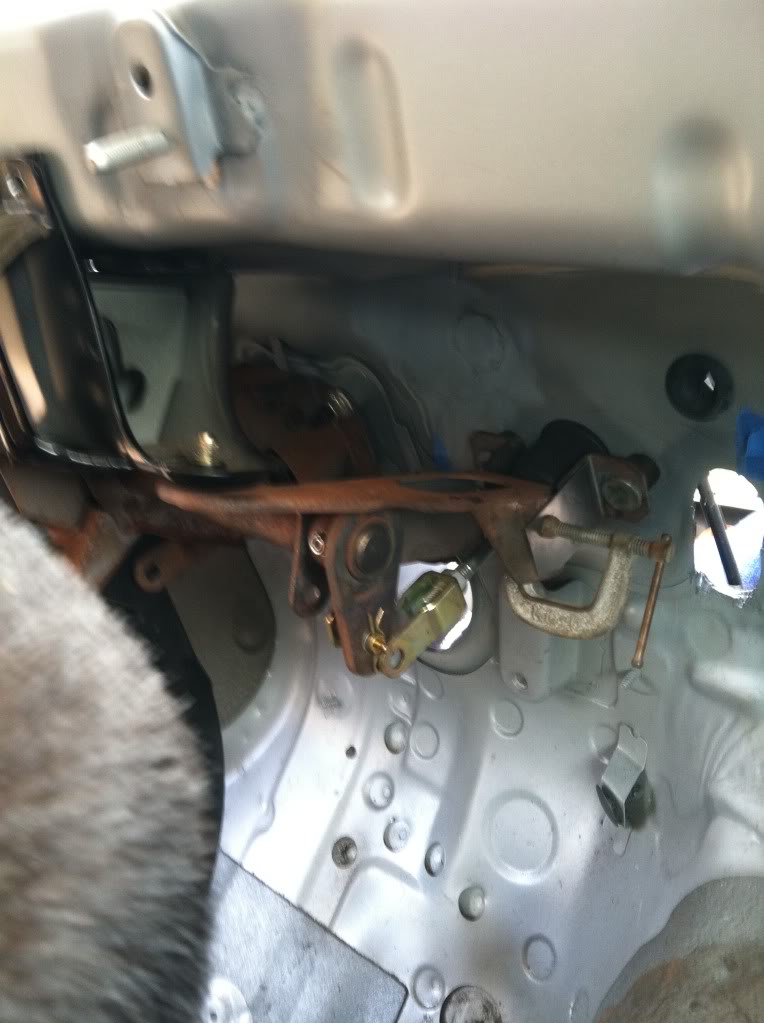

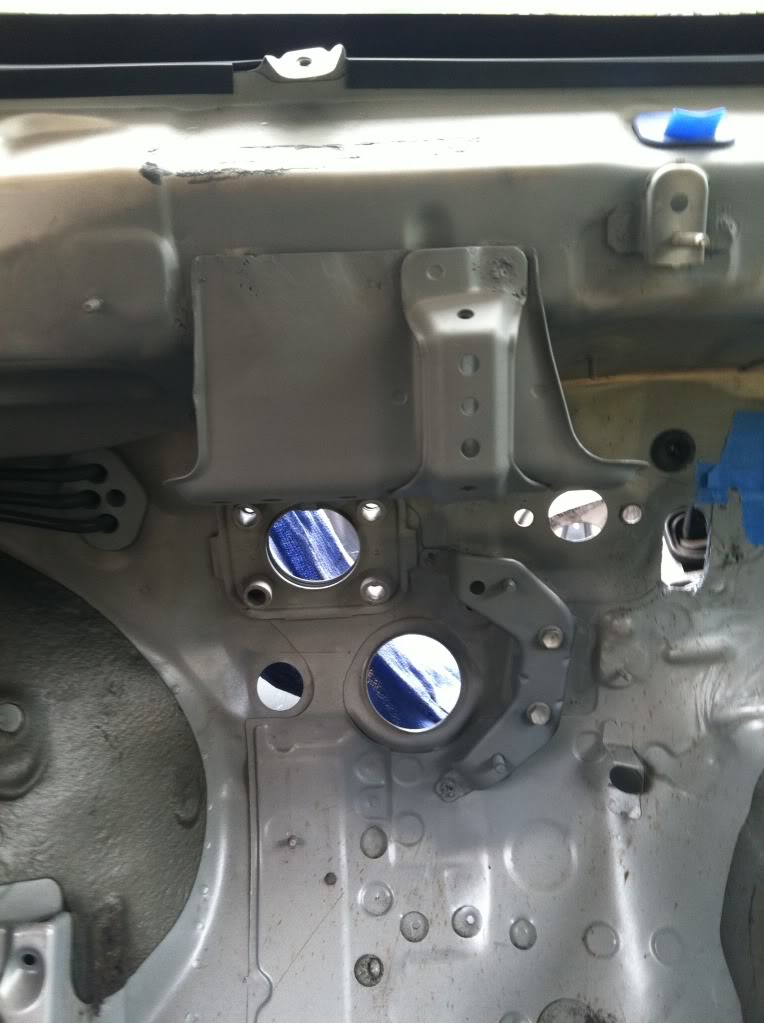

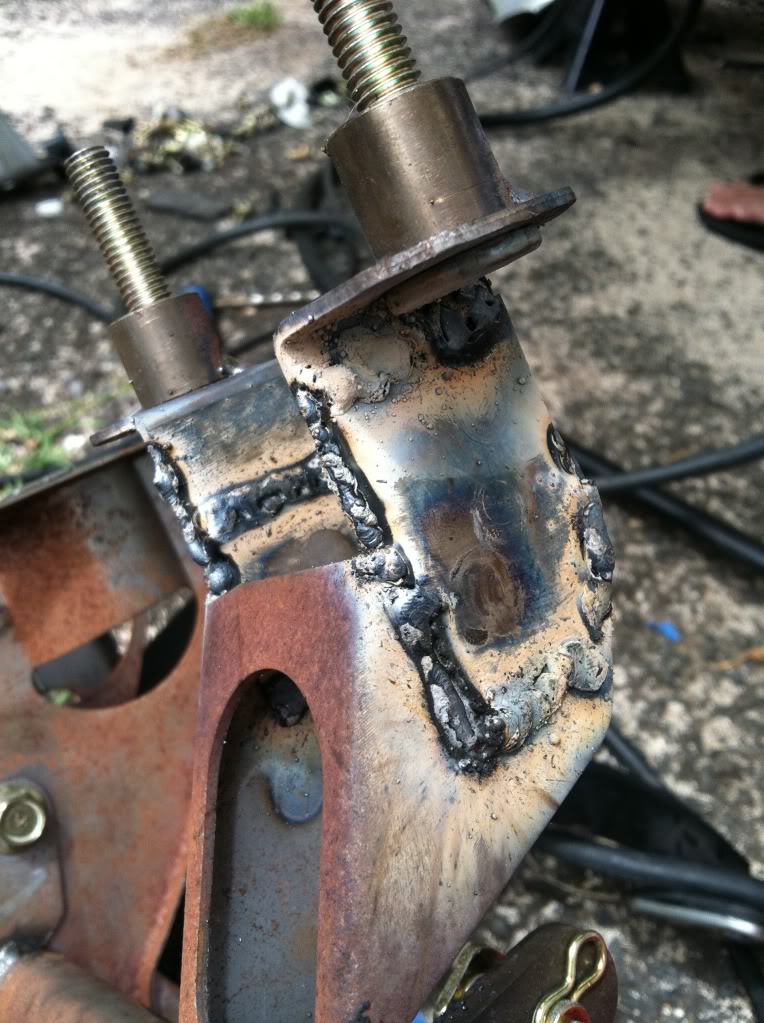

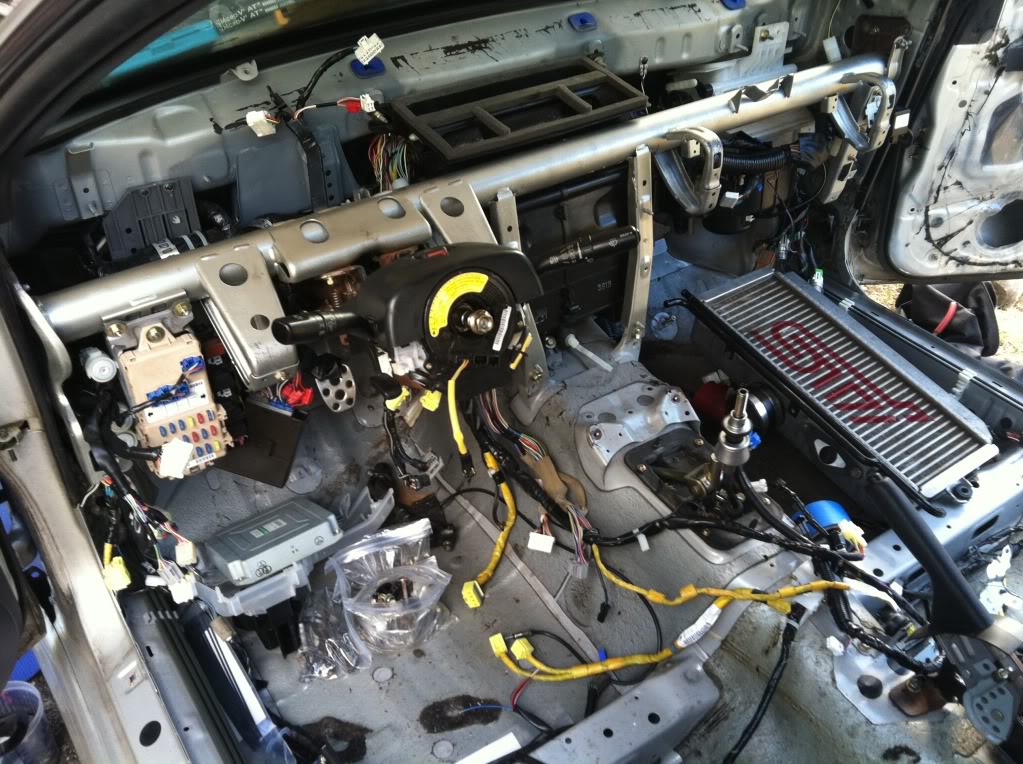

Before the engine could be put in, we had to put in the brackets for the clutch pedal, brake master and booster, and the rest of the pedal assembly. Jimi once again came thru and decided that it would be cleaner if we chopped off the mounts from the STi frame and weld them on to the RS...
![Name: Picture021.jpg
Views: 8
Size: 312.0 KB](https://www.i-club.com/forums/attachments/hawaii-43/117410d1501247090-another-dizzy-diznave-motorsports-jt-tuning-swap-begins-picture021.jpg)
![Name: Picture023.jpg
Views: 8
Size: 148.1 KB](https://www.i-club.com/forums/attachments/hawaii-43/117411d1501247090-another-dizzy-diznave-motorsports-jt-tuning-swap-begins-picture023.jpg)
![Name: Picture022.jpg
Views: 8
Size: 75.5 KB](https://www.i-club.com/forums/attachments/hawaii-43/117412d1501247090-another-dizzy-diznave-motorsports-jt-tuning-swap-begins-picture022.jpg)
![Name: Picture024.jpg
Views: 8
Size: 91.5 KB](https://www.i-club.com/forums/attachments/hawaii-43/117413d1501247090-another-dizzy-diznave-motorsports-jt-tuning-swap-begins-picture024.jpg)
![Name: Picture025.jpg
Views: 7
Size: 85.7 KB](https://www.i-club.com/forums/attachments/hawaii-43/117414d1501247090-another-dizzy-diznave-motorsports-jt-tuning-swap-begins-picture025.jpg)
As you can see...there were a lot of modifications going on...
![Name: Picture021.jpg
Views: 8
Size: 312.0 KB](https://www.i-club.com/forums/attachments/hawaii-43/117410d1501247090-another-dizzy-diznave-motorsports-jt-tuning-swap-begins-picture021.jpg)
![Name: Picture023.jpg
Views: 8
Size: 148.1 KB](https://www.i-club.com/forums/attachments/hawaii-43/117411d1501247090-another-dizzy-diznave-motorsports-jt-tuning-swap-begins-picture023.jpg)
![Name: Picture022.jpg
Views: 8
Size: 75.5 KB](https://www.i-club.com/forums/attachments/hawaii-43/117412d1501247090-another-dizzy-diznave-motorsports-jt-tuning-swap-begins-picture022.jpg)
![Name: Picture024.jpg
Views: 8
Size: 91.5 KB](https://www.i-club.com/forums/attachments/hawaii-43/117413d1501247090-another-dizzy-diznave-motorsports-jt-tuning-swap-begins-picture024.jpg)
![Name: Picture025.jpg
Views: 7
Size: 85.7 KB](https://www.i-club.com/forums/attachments/hawaii-43/117414d1501247090-another-dizzy-diznave-motorsports-jt-tuning-swap-begins-picture025.jpg)
As you can see...there were a lot of modifications going on...
#55
Staff Member
iTrader: (16)
So after all that...it was one issue that lead to another.
I had decided early on to keep my RCE Tarmac II suspension and do a 5 x 114.3 hub conversion. This would allow me more choice for rims, as well as keep the same ones I use for SCCA.

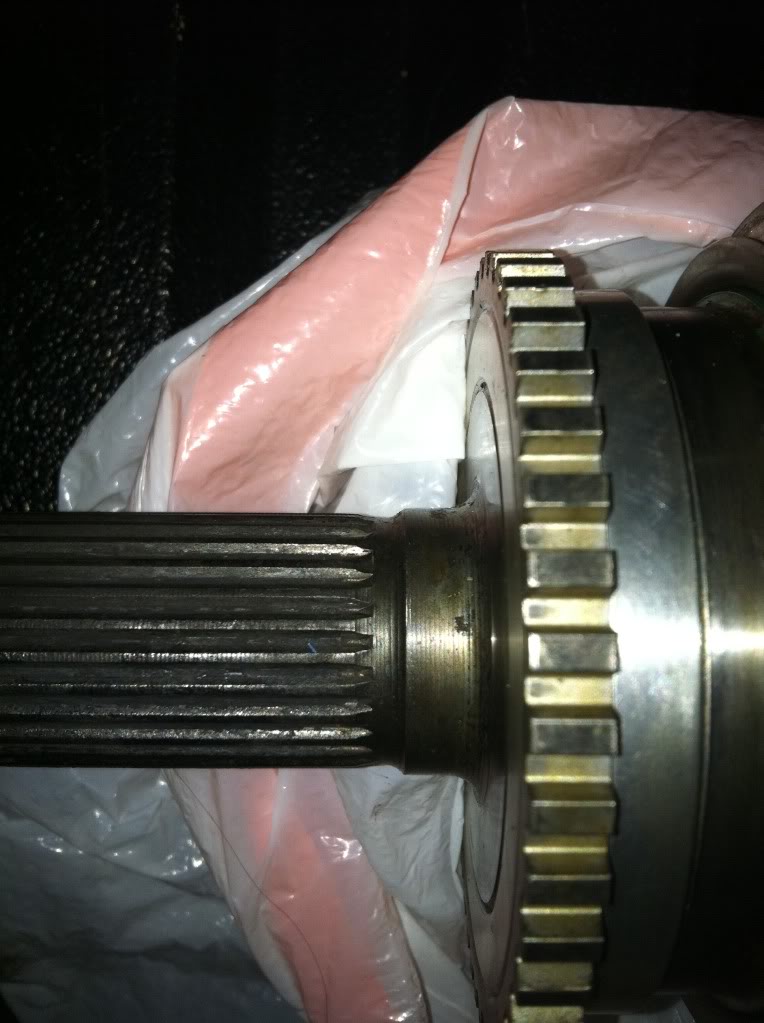

The ordeal with 6Gun Racing is not something to be discussed here...so to make the story short, I got all the necessary parts from Subaru and LIC Motorsports. Unfortunately, the batch of adapter rings I got were off...
![Name: Picture030.jpg
Views: 7
Size: 87.3 KB](https://www.i-club.com/forums/attachments/hawaii-43/117406d1501247090-another-dizzy-diznave-motorsports-jt-tuning-swap-begins-picture030.jpg)
Luckily, Noah from LIC sure understands customer service and sent me out new ones that were the right ones.
Another issue...GD top front camber plates do NOT work on a GC...
![Name: Picture035.jpg
Views: 7
Size: 115.1 KB](https://www.i-club.com/forums/attachments/hawaii-43/117407d1501247090-another-dizzy-diznave-motorsports-jt-tuning-swap-begins-picture035.jpg)
This will get figured out shortly...
I had decided early on to keep my RCE Tarmac II suspension and do a 5 x 114.3 hub conversion. This would allow me more choice for rims, as well as keep the same ones I use for SCCA.
The ordeal with 6Gun Racing is not something to be discussed here...so to make the story short, I got all the necessary parts from Subaru and LIC Motorsports. Unfortunately, the batch of adapter rings I got were off...
![Name: Picture030.jpg
Views: 7
Size: 87.3 KB](https://www.i-club.com/forums/attachments/hawaii-43/117406d1501247090-another-dizzy-diznave-motorsports-jt-tuning-swap-begins-picture030.jpg)
Luckily, Noah from LIC sure understands customer service and sent me out new ones that were the right ones.

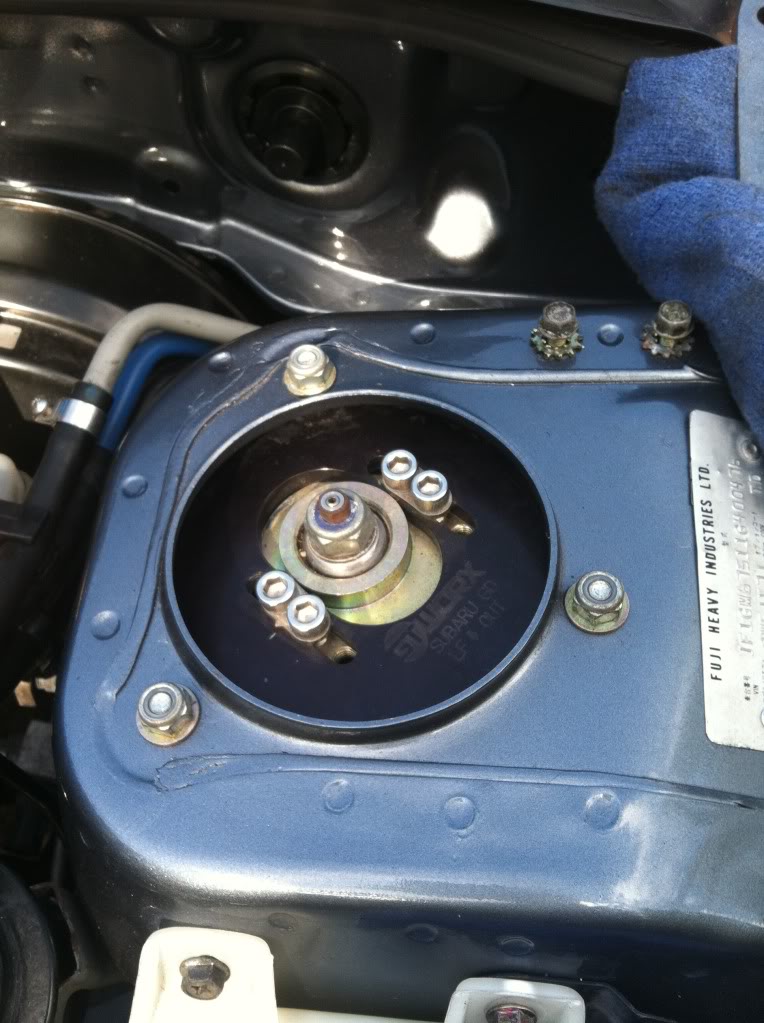

Another issue...GD top front camber plates do NOT work on a GC...
![Name: Picture035.jpg
Views: 7
Size: 115.1 KB](https://www.i-club.com/forums/attachments/hawaii-43/117407d1501247090-another-dizzy-diznave-motorsports-jt-tuning-swap-begins-picture035.jpg)
This will get figured out shortly...
