AWD 20T

iTrader: (11)

Hey guys,

I'm having trouble with my blow off valve(s). I have both a TurboXS RFL and a GFB Hybrid. I installed the RFL and under 7 psi, it works very well. However, anything really over that and when I'm at full throttle/boost, I can't hear anything. Sometimes it will be s very very very quick "pssh", other times a very delayed sound, and most of the time nothing at all. I then removed the RFL and installed the GFB and the same thing happens. The only other mods I have on my car is a Vishnu turboback, uppipe, and pulley. Any ideas what could be causing this problem?

Chris

KurleeDaddeeWRX

iTrader: (26)

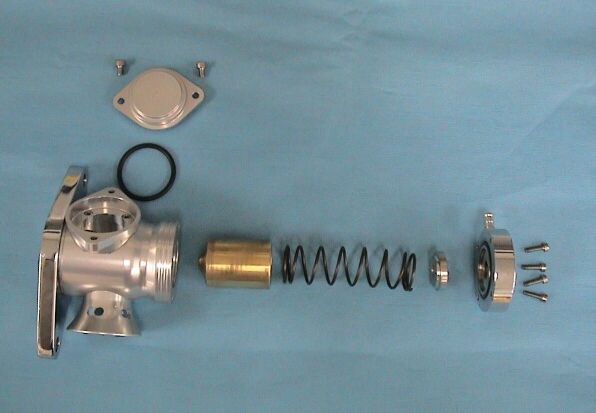

The piston that rides up and down inside of the BOV may need lubricating. It may be sticking to the inside of the body of the BOV. I had this problem with my GFB and took it apart and took this pic. Open up the BOV and disassemble everything. Wipe out the inside with isopropyl alcohol as well as the piston. Re-lube the outside of the piston(brass portion in pic) with silicone grease and put everything back together.

KurleeDaddeeWRX

iTrader: (26)

Also check the vaccum hose that goes to the BOV is in good condition and has no cracks. This will definately affect the vaccum signal to the BOV. Do you have a vaccum "T" in that area? Make sure all connections are secure and tight.

KurleeDaddeeWRX

iTrader: (26)

Here answers to your PM since your mailbox is full:

I wouldn't use WD40, since WD40 is not a solvent cleaner, but a lubricant. Go to Longs or Rite Aid and buy a bottle of rubbing alcohol to clean it with.

Did you check to make sure the hose that goes to the BOV is in good condition and isn't cracked? And all of the conections to that vaccum hose have tight connections.

Is the BOV gasket that goes between the BOV and the intercooler in good condition. That could also cause a problem.

Also make sure the cap that goes in the return line is secure and isn't leaking. That could also cause a problem.

The only other solution I can think of is to try the stock BOV and see if your car runs any different.

Kurlee Daddee
(THE ORIGINAL)

zumnwrx

iTrader: (6)

just asking ..... what happens if its not fixed...?

edgar,

KurleeDaddeeWRX

iTrader: (26)

His question leads me to ask another question.

Are you getting full boost when you should? That is why I asked so many questions about leaks. If you had a vaccum leak you would know about it. Either your idle would be off. It would go way down and then come up when you hit the gas. Or you wouldn't be able to get full boost under WOT, since you had some sort of leak(vaccum or turbo system.)

AWD 20T

iTrader: (11)

Haven't had a chance to run a lot of tests yet, but my idle is somewhat off. If I rev it a little bit, it dips down to like 300 then back up to 700ish RPMs. Sometimes it even idles like it has cams: 500-1000-500-1000 and so on...

KurleeDaddeeWRX

iTrader: (26)

This was my exact problem when I had my GFB. And the re-lubricating solved the idle problem. Another thing you can check as well:

With the car running at idle, open up the hood and get some carb cleaner. Spray car cleaner around the circumference of the BOV on the intercooler. If the idle goes up at all when you are spraying, you have a gasket leak. You will need to replace the BOV gasket. Try it. It is worth a shot. If that doesn't help, re-lubricate the BOV and try again. If all else fails, get rid of the F'ing BOV's and go back to stock. Nothing better than 100% recirculation anyways.

Kurlee Daddee
(THE ORIGINAL)

chanrapang

turboxs rfl has a terrible idling problem if you notice when your at idle the rpm jumps up and down like the car is about to shut down . thats basically bcause the bov is 100% atmosphere which is not to good for your car take it from my experience. Now i have the gfb and i love it

AWD 20T

iTrader: (11)

Ok, so for right now I've given up with the RFL, and I'm concentrating on the GFB... I tried changing the block off piece that covers the recirculating hose, I cleaned out the GFB BOV and regreased it with silicone grease and even got a new IC gasket. As far as I can see, there is no leak/crack in the vacuum hose. Ahhhh, what now!

KurleeDaddeeWRX

iTrader: (26)

Go back to stock and sell the POS BOV!

Kurlee Daddee
(THE ORIGINAL)

AWD 20T

iTrader: (11)

Could it be a vacuum leak though? I haven't had a good chance to check yet, due to the rain...

KurleeDaddeeWRX

iTrader: (26)

The vacuum leak can be found by spraying the carb cleaner around the circumference of the BOV and around all vacuum lines. Try it. Have the car on and try it when the car is at idle. If the idle suddenly jumps, you have found a vacuum leak.

AWD 20T

iTrader: (11)

I'm gonna try that tomorrow... Let's just suppose that there isn't a vacuum leak.. Is there anything else it could possibly be? I bought both of these BOVs off local members (friends of mine) and I've been in both of their cars and the two BOVs worked 100% perfect.

KurleeDaddeeWRX

iTrader: (26)

What exactly is the problem with both of these BOV's. Please describe in full detail.

Are there any adjustment screws on either BOV, to decrease the spring pressure?

Kurlee Daddee
(THE ORIGINAL)
