stock boost restrictor
#1
Help: Need stock boost restrictor
Hi,
Does anyone have a spare or no use stock boost restrictor. This is the one that many people swap out for the 3/16 restrictor instead. I remove my EBC, and are using the stock boost controller again, so I will need that restrictor back to connect to the T that's going to the wastegate and the turbo compressor.
Your help is greatly appreciated.
Thanks!
Does anyone have a spare or no use stock boost restrictor. This is the one that many people swap out for the 3/16 restrictor instead. I remove my EBC, and are using the stock boost controller again, so I will need that restrictor back to connect to the T that's going to the wastegate and the turbo compressor.
Your help is greatly appreciated.
Thanks!
Last edited by jkiny; 11-17-2003 at 02:54 PM.
#2
Yeah, You've Probably Never Heard Of Me.
iTrader: (21)
Join Date: Sep 2003
Location: in a glass case of emotion.
Posts: 17,962
Car Info: 345/30/19s

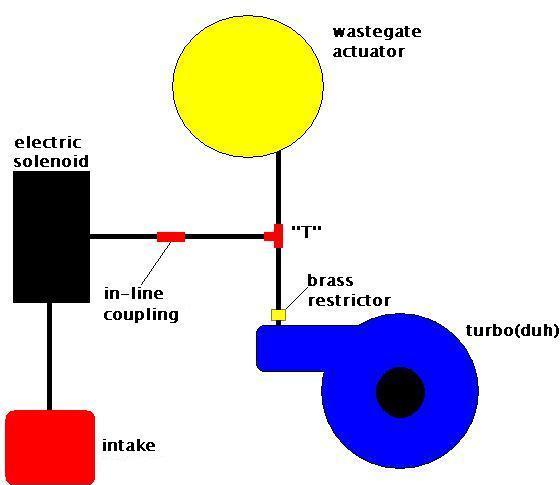

just wanted to make sure you know that the in line coupling that alot of people like to replace with a 3/16" coupling is not the actual restricor that regulates vacuum to the wastegate actuator, that is actually a TINY brass insert thats actually tucked inside the vacuum hose right in front of the turbo(see pic)
If you just replace the stock in-line coupling without replacing the brass restrictor you not get full stock boost.
If you just replace the stock in-line coupling without replacing the brass restrictor you not get full stock boost.
#3
Registered User
iTrader: (3)
Join Date: Apr 2003
Location: Santa Monica, CA
Posts: 142
Car Info: 03 WRX 5sp
I like many, just replaced the plastic vacuum connectors with bigger less restrictive ones...
Where do you buy the bigger sized brass connector that attached to the turbo?
What size do u use, and do you get the same amount of stock boost for all gears, or does it bump up the boost several psi?
Thanks, and GREAT diagram..
Patrick
03 WRX
Santa Monica
Where do you buy the bigger sized brass connector that attached to the turbo?
What size do u use, and do you get the same amount of stock boost for all gears, or does it bump up the boost several psi?
Thanks, and GREAT diagram..
Patrick
03 WRX
Santa Monica
#4
Yeah, You've Probably Never Heard Of Me.
iTrader: (21)
Join Date: Sep 2003
Location: in a glass case of emotion.
Posts: 17,962
Car Info: 345/30/19s
Originally posted by SpecWRX
I like many, just replaced the plastic vacuum connectors with bigger less restrictive ones...
Where do you buy the bigger sized brass connector that attached to the turbo?
What size do u use, and do you get the same amount of stock boost for all gears, or does it bump up the boost several psi?
Thanks, and GREAT diagram..
Patrick
03 WRX
Santa Monica
I like many, just replaced the plastic vacuum connectors with bigger less restrictive ones...
Where do you buy the bigger sized brass connector that attached to the turbo?
What size do u use, and do you get the same amount of stock boost for all gears, or does it bump up the boost several psi?
Thanks, and GREAT diagram..
Patrick
03 WRX
Santa Monica
Anyhow, I wouldnt worry about finding a different sized brass restrictor, if your going that far just take out the whole mess and get a $25 manual boost controller.
#5
Registered User
Join Date: Mar 2006
Location: Olympia, Wa
Posts: 2
Car Info: 2004 WRX COBB air intake, COBB short throw shift lever, #" exhaust with high flow muffler
Is this brass restricter also in the 2004 WRX because I just ordered all those lines from the dealer and I didnt notice anything in it.
#8
the artist formerly known as mcdrama
iTrader: (23)
Join Date: Apr 2004
Location: Santa Cruz Mountains, CA.
Posts: 6,428
Car Info: WRBP 2015 WRX Premium/CVT
btw, Mike at Gruppe-S should have some stock pills, otherwise try calling Subaru of Santa Cruz, or looking for the part number in one of the PDFs floating around the net.
+1 for yanking the tubes and getting a 3 port prodrive solenoid.
+1 for yanking the tubes and getting a 3 port prodrive solenoid.
