ARGH!! Anyone know how to extract a broken 14mm bolt?
#1
Registered User
Thread Starter
iTrader: (3)
Join Date: Nov 2006
Location: Daly City/ Davis
Posts: 708
Car Info: Drove a Cavalier with a WRX body kit
ARGH!! Anyone know how to extract a broken 14mm bolt?
ARGH!!
Not sure if I should post this in the classified or on the forums. Just borked a 14mm (thick) bolt that sits near the lower part of the knuckle. Anybody know where I can get this bolt, fairly quickly and cheap?
Seeing how GC imprezas are scarce in the junkyards... I guess a last resort is to drive over to the dealer and pick one up...
Also anyone familiar with extracting a broken bolt?? Especially a 14mm bolt that is pretty thick...... I was so close.... so close to fixing my wheel bearing FFFUUUUUUU!!!

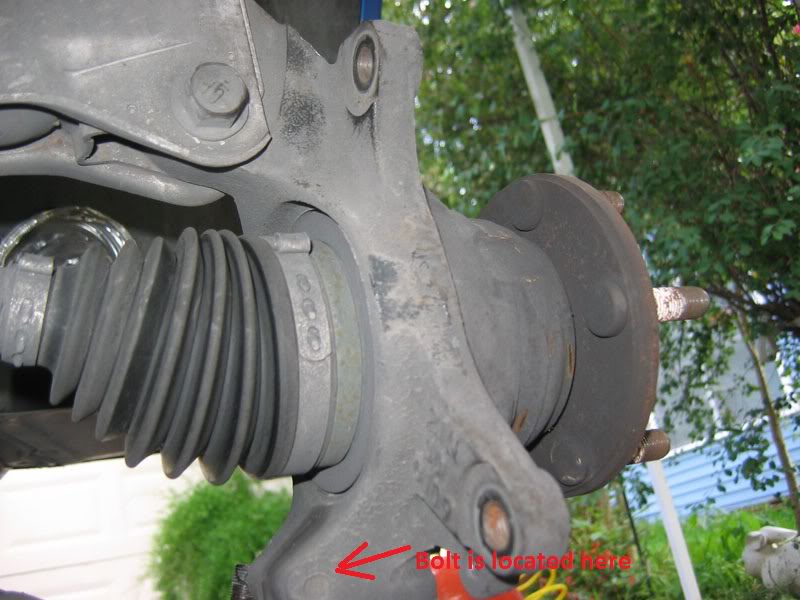

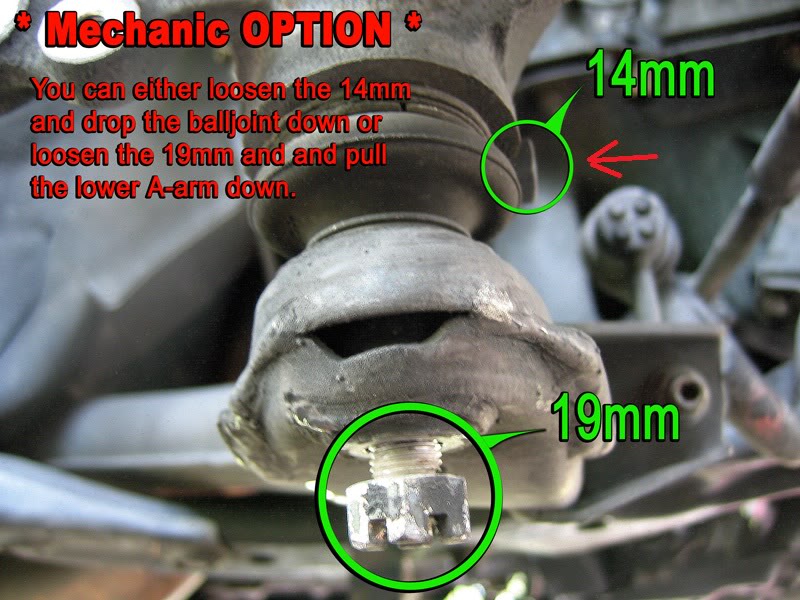

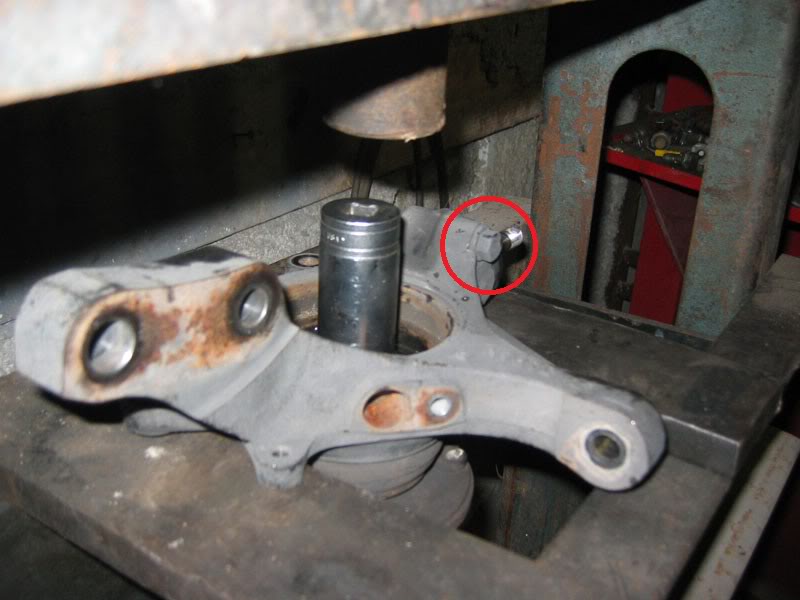

Pictures for reference:
Not sure if I should post this in the classified or on the forums. Just borked a 14mm (thick) bolt that sits near the lower part of the knuckle. Anybody know where I can get this bolt, fairly quickly and cheap?
Seeing how GC imprezas are scarce in the junkyards... I guess a last resort is to drive over to the dealer and pick one up...
Also anyone familiar with extracting a broken bolt?? Especially a 14mm bolt that is pretty thick...... I was so close.... so close to fixing my wheel bearing FFFUUUUUUU!!!
Pictures for reference:
Last edited by iLikeTofu; 04-12-2011 at 02:39 PM.
#5
you'll have to go pick up a bolt extract kit. it comes with drill bits and a backwards threaded bolt. So what you do is drill into the bolt then thread the backwards extractor in and start turning. I have had to do this before.
Good luck to you.
Good luck to you.
#6
Registered User
iTrader: (5)
Join Date: Jan 2004
Location: Sac
Posts: 1,453
Car Info: wrx wagon/2.5rs
Drill the sucker out. Reverse drill bit/extrator would probably be the only way. Sure the rest of that bolt stuck in there is pretty seized, seeing the the head of it broke off. Just be careful drilling so you don't mess the threads up.
#8
Registered User
Thread Starter
iTrader: (3)
Join Date: Nov 2006
Location: Daly City/ Davis
Posts: 708
Car Info: Drove a Cavalier with a WRX body kit
Anyone know where I can buy the bolt for cheap?
#11
Registered User
iTrader: (1)
Join Date: Jan 2008
Location: Santa Cruz, Ca
Posts: 143
Car Info: 07 STi, 02 F150-FX4, 04 ZX-636, 07 990 SuperDuke
If you broke the head off your best bet is to get a bolt extractor kit (not that expensive), or to weld something else onto it so that you can pull it out. I wouldn't recommend drilling it out and then having to retap the threads. Don't forget to use some penetrating fluid first.
#15
Registered User
iTrader: (7)
Join Date: May 2007
Location: Fremont/Davis, CA
Posts: 977
Car Info: 96 gm(sold), 98 bk, 02 sf
This exact thing happened to me when I changed my brake calipers. I got the bolt extractor kit, but the bolt was so rusted and ruined the threading for the hole, so I had to rethread the hole.
I'd use penetrating oil/fluid and let it sit a really long time.
For a replacement bolt, I swapped from legacy calipers to wrx ones and the wrx bolts were the same. So you might be able to get another one of any Subaru?
I'd use penetrating oil/fluid and let it sit a really long time.
For a replacement bolt, I swapped from legacy calipers to wrx ones and the wrx bolts were the same. So you might be able to get another one of any Subaru?
